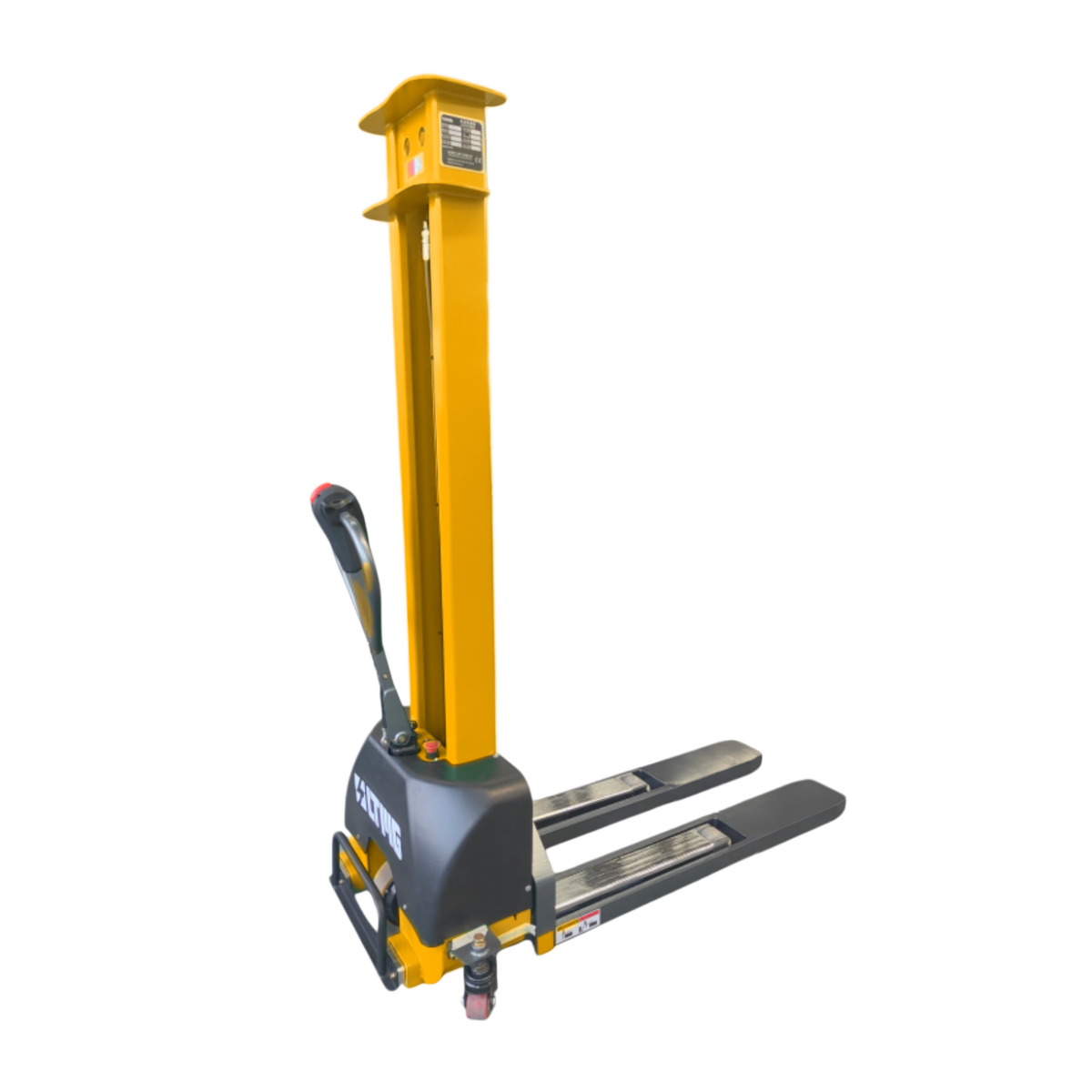

Electric Self Loading Stacker
ERB10
1000 kgRated Capacity
400 mmLoad Center
800/900/1000/1100/1200/1300/1500/1600 mmLift Height
Key Features
The equipment is reinforced with a thickened steel plate, which enhances its stability during the loading and unloading process. This robust construction also boosts its load-bearing capacity, allowing it to handle heavier weights with ease.
Technical data
型号ERB10
Power TypeLi-Ion Battery /
Operation TypeWalkie /
Rated Capacity1000 kg
Load Center400 mm
Wheelbase924 mm
Service Weight302/316/320/324/328/332/342/347 kg
Driving Wheel Sizeφ185×70 mm
Front Wheel Sizeφ80×70 mm
Universal Wheel Sizeφ75×45 mm
Middle Wheel Sizeφ45×30 mm
Front Wheel Track405/525 mm
Rear Wheel Track802 mm
Middle Wheel Position158 mm
Overall Height (Mast Lowered)1166/1266/1366/1466/1566/1666/1866/1966 mm
Overall Height (Fork Raised)1850/2050/2250/2450/2650/2850/3250/3450 mm
Lift Height800/900/1000/1100/1200/1300/1500/1600 mm
Overall Length1603 mm
Overall Width852 mm
Fork Length1195 mm
Fork Width190 mm
Fork Thickness70 mm
Distance Between Forks565/685 mm
Outrigger Length770 mm
Travel Speed (Laden/Unladen)1/3.5 km/h
Maximum Lifting Speed55 mm/s
Maximum Lowering Speed100 mm/s
Gradeability (Laden/Unladen)46152 %
Drive Motor Power0.8 kW
Lift Motor Power1.6 kW
Battery Voltage48 V
Battery CapacityStandard 15; Optional 30 / quick-change 30 Ah
Battery Weight2010-06-10 0:00:00 kg
