Key Features
Without steering the truck body, the forks can rotate and shift left or right, enabling efficient three-directional loading and unloading.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data

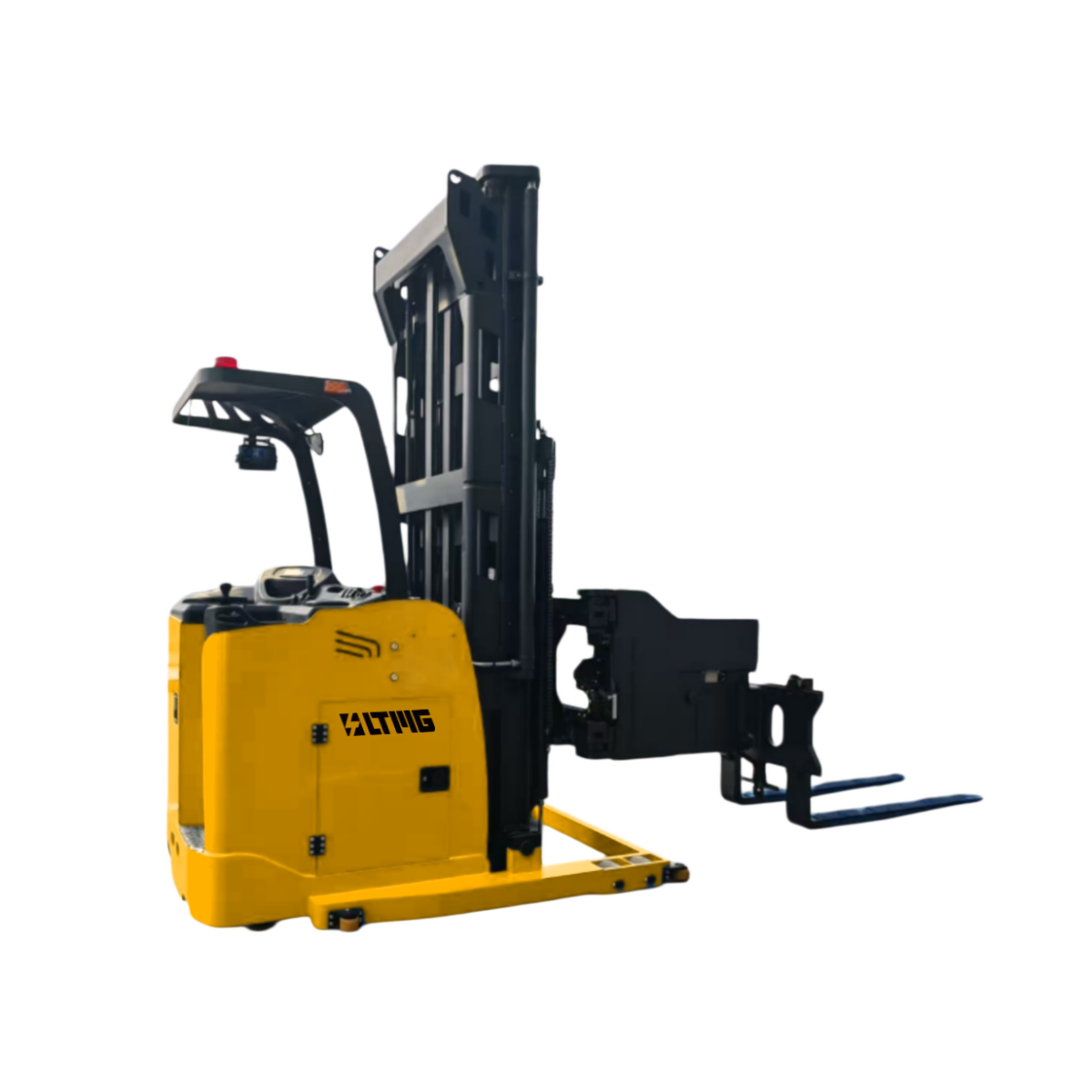

型号FRB12-S
Power TypeElectric /
Operation TypeSide-standing /
Rated Capacity1200 kg
Load Center550 mm
Service Weight with Battery5200 kg
Wheel TypePU /
Drive Wheel SizeФ382*142 mm
Front Wheel SizeФ145*100 mm
Balance Wheel SizeФ180*76 mm
Front Track Width1210 mm
Wheelbase1700 mm
Mast Closed Height3400 mm
Free Lift Height2235 mm
Lift Height6000 mm
Max. Mast Height7125 mm
Overhead Guard Height2260/2300 mm
Overall Length (Forks Rotated to Both Sides)3045 mm
Overall Width1455 mm
Anti-collision Guardrail Width1500 mm
Fork Dimensions40/122/1070 mm
Fork Adjustment Range260-650 (customized) mm
Min. Ground Clearance (Wheelbase Center)32 mm
Stacking Aisle Width1500（1000*1000 pallet） mm
Aisle Guardrail Height120 mm
Min. Turning Radius1985 mm
Main Aisle Width3270+400 mm
Max. Travel Speed (Full Load/No Load)8/7 km/h
Lift Speed (Full Load/No Load)0.30/0.26 m/s
Lowering Speed (Full Load/No Load)0.36/0.39 m/s
Service BrakeElectromagnetic /
Drive Motor Power6.5 AC kW
Lift Motor Power15AC kW
Battery TypeLead acid /
Battery Voltage/Capacity48V/400Ah V/Ah
Battery Charger48V/50A V/A
Drive Control ModeAC /
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
