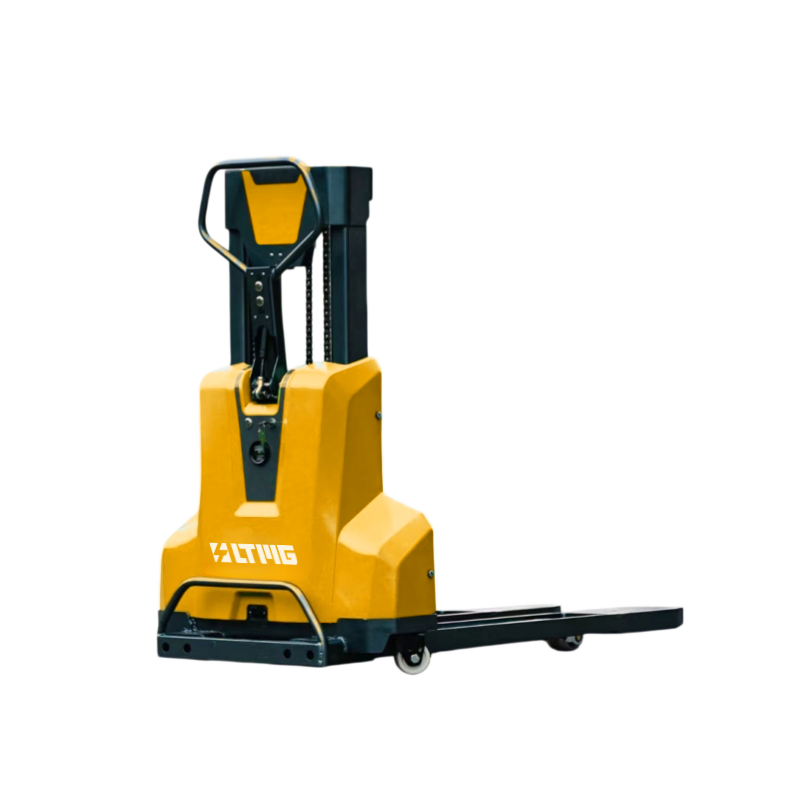

Semi-Electric Self-Lifting Stacker
SERB03
300 kgRated Capacity
400 mmLoad Center
800/900/1000/1100/1200/1300 mmLift Height
Key Features
The equipment is reinforced with a thickened steel plate for greater structural rigidity, providing more stable loading and unloading while significantly enhancing load capacity for heavier-duty applications.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
型号SERB03
Power TypeLead-acid Battery /
Operation TypeWalkie /
Rated Capacity300 kg
Load Center400 mm
Wheelbase749 mm
Service Weight166/168/170/172/174/176 kg
Front Wheel Sizeφ70×60 mm
Universal Wheel Sizeφ75×50 mm
Middle Wheel Sizeφ45×25 mm
Front Wheel Track365 mm
Rear Wheel Track620 mm
Overall Height (Mast Lowered)1120/1212/1312/1412/1512/1612 mm
Lift Height800/900/1000/1100/1200/1300 mm
Overall Length1467 mm
Overall Width708 mm
Fork Length1150 mm
Fork Width170 mm
Fork Thickness50 mm
Distance Between Forks535 mm
Outrigger Length670 mm
Maximum Lifting Speed40 mm/s
Maximum Lowering Speed50 mm/s
Lift Motor Power0.45 kW
Battery Voltage24 V
Battery Capacity12 Ah
Battery Weight10 kg
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
