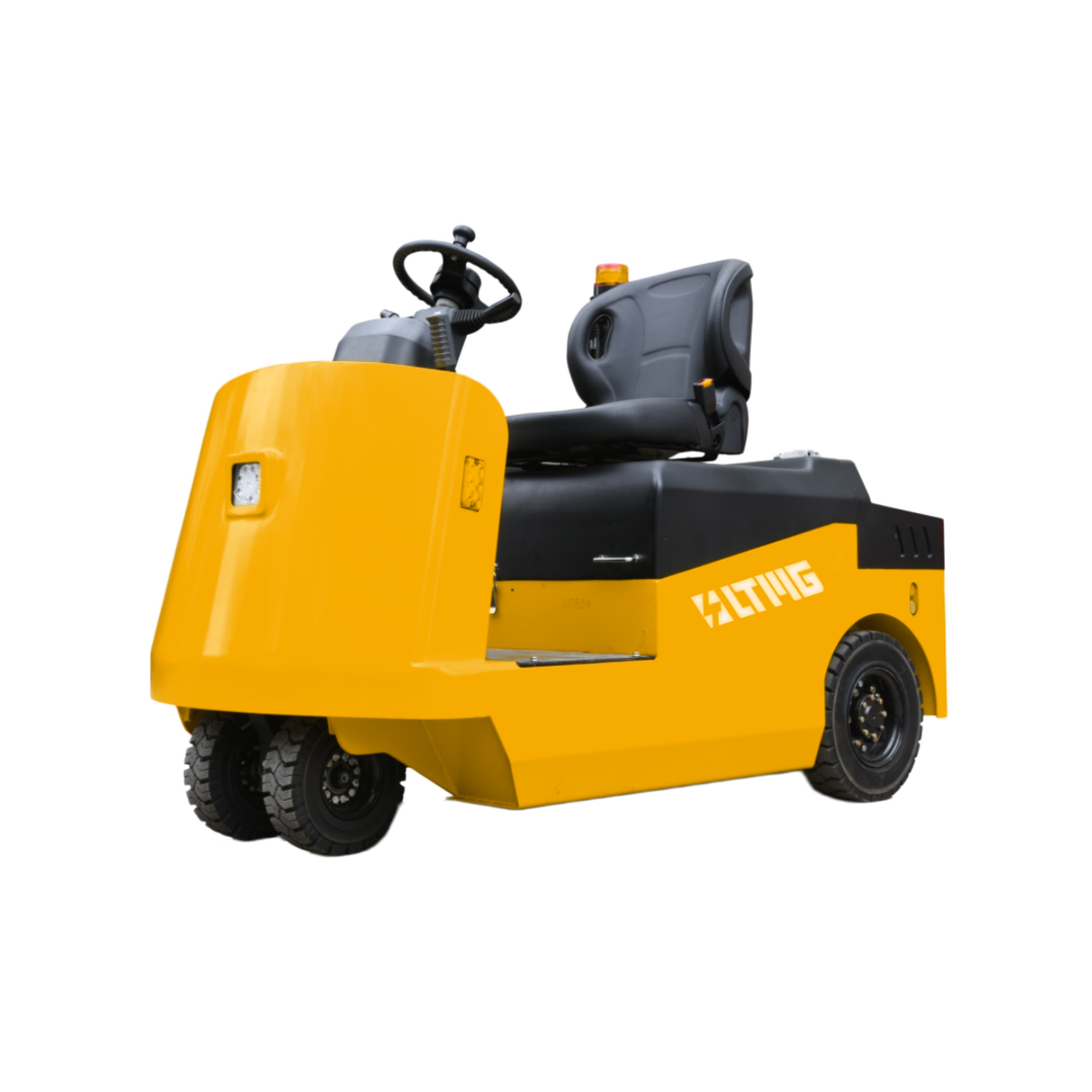

Electric Tow Tractor（Seat Type）
TB04
Electric /Power Type
Seated type /Operating Type
4000 kgRated Capacity
Key Features
Electronic Power Steering enhances operator comfort and reduces steering effort for easier handling.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
型号TB04
Power TypeElectric /
Operating TypeSeated type /
Rated Capacity4000 kg
Rated Hook Traction1000 N
Wheelbase1355 mm
Service Weight (with Battery)1000 kg
Battery Weight550 kg
Tire TypeRubber solid tire /
Front Tire3.50-5 /
Rear Tire4.00-8 /
Overall Height1445 mm
Seat Height900 mm
Rear Hook Height300/410 mm
Coupling Height400 mm
Rear Overhang492 mm
Loading Platform Height420 mm
Overall Length2030 mm
Overall Width985 mm
Ground Clearance100 mm
Turning Radius1700 mm
Travel Speed (Unladen/Laden)7/5 km/h
Gradeability (Unladen/Laden)8/4 %
Drawbar Pull (Laden)3000 N
Service BrakeMechanical + hydraulic /
Drive Motor Power4.5 kW
Battery TypeLead-acid /
Battery Voltage/Capacity24/350 V/Ah
Charger24/50 V/A
Drive ControlAC /
Noise Level75 dB(A)
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
