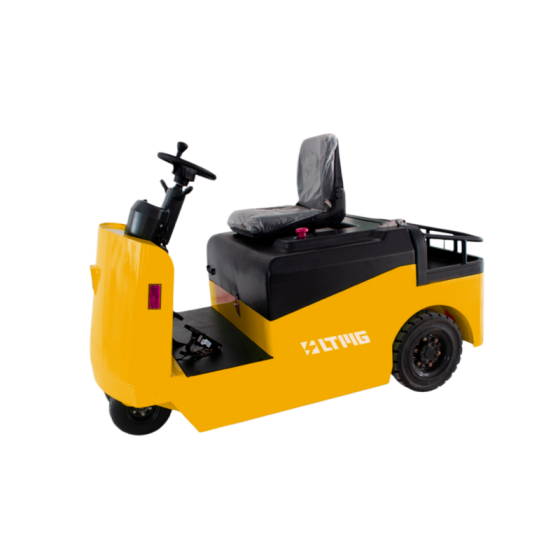

Electric Tow Tractor（Seat Type）
TB06
1445 mmVehicle Height
900 mmSeat Height
300/410 mmTowing Hitch Height
Key Features
Features a CURTIS controller with multiple automatic protection systems for reliable and safe operation.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
型号TB06
Power TypeElectric /
Operator TypeSeated type /
Wheelbase1355 mm
Vehicle Height1445 mm
Seat Height900 mm
Towing Hitch Height300/410 mm
Pedal Height400 mm
Rear Overhang492 mm
Loading Platform Width420 mm
Vehicle Length2030 mm
Vehicle Width985 mm
Ground Clearance100 mm
Turning Radius1700 mm
Service Weight (Including Battery)1200 kg
Battery Weight550 kg
Drive Motor Power4.5 kW
Battery TypeLead-acid /
Battery Voltage / Nominal Capacity48/280 V / Ah
Charger48/40 V / A
Rated Towing Capacity8000 kg
Rated Drawbar Pull1500 N
Tire TypeRubber solid tire /
Front Tire Size3.50-5 /
Rear Tire Size4.00-8 /
Driving Speed (Unladen / Laden)7/5 km/h
Gradeability (Unladen / Laden)10/5 %
Maximum Drawbar Pull (Laden)3200 N
Service BrakeMechanical + hydraulic /
Drive Control TypeAC /
Sound Level at Driver's Ear (EN 12053)75 dB(A)
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
