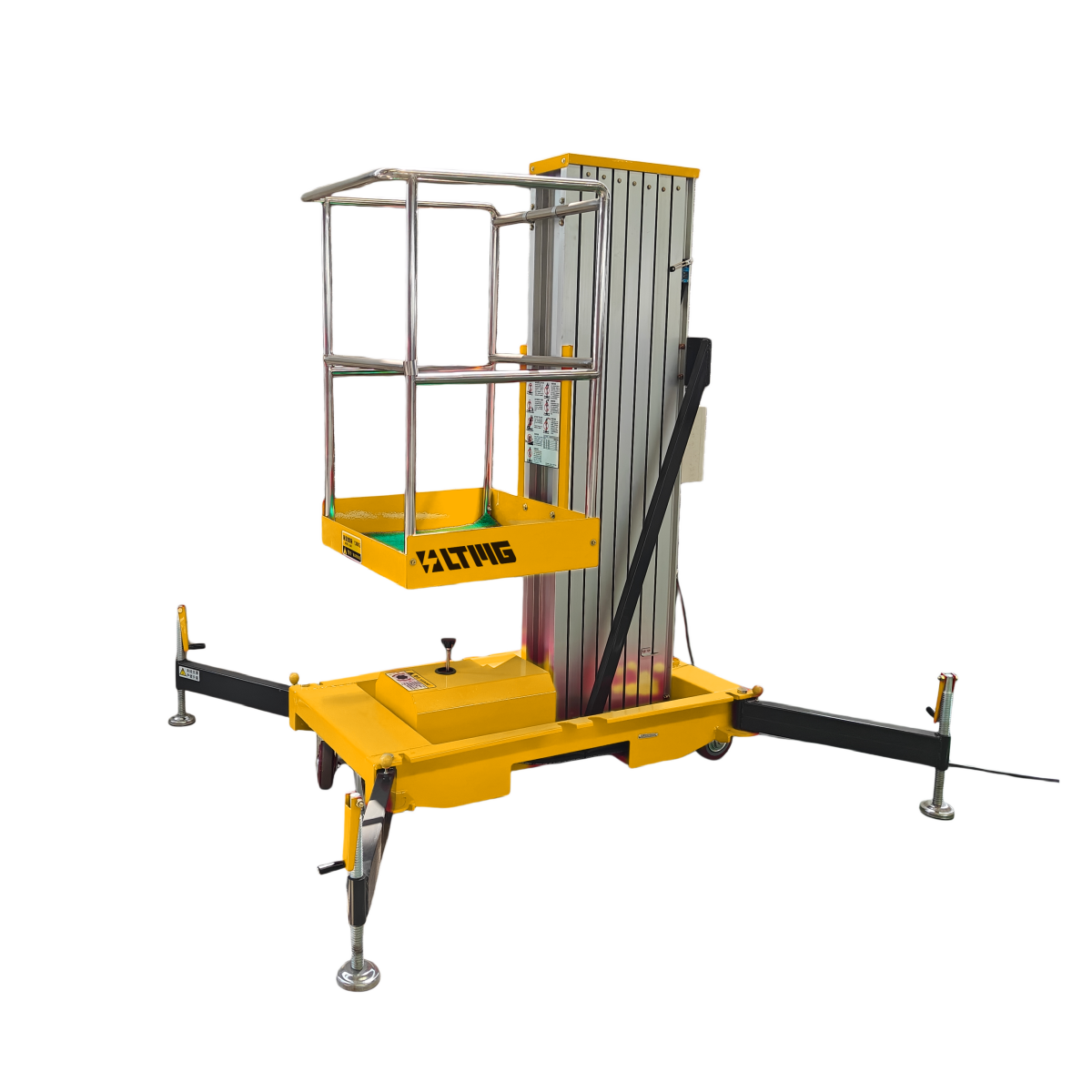

Mast lifts
LTAP8-130
10 mMaximum Working Height
8 mMaximum Platform Height
130 kgSafe Working Load
Key Features
Built with premium aluminum alloy for enhanced strength and service life.
Technical data
型号LTAP8-130
Maximum Working Height10 m
Maximum Platform Height8 m
Working Platform Dimensions650×650×1100 mm
Overall Dimensions1420×780×1970 mm
Outrigger Size1702×1914 mm
Minimum Ground Clearance0.05 m
Wheelbase1.29 m
Weight380 kg
Safe Working Load130 kg
Maximum Workers1 /
Lifting Motor220/1.1 V/kW
Lifting Speed46086 m/min
Tires6 inches /
Table Material40×20×1.5 /
Rectangular Tube3 mm
Cylinder40mm×1 /
Strut Materialthickness 6.5 /
ElectricalRemote Control Distribution Box /
ChassisQ235 Steel Plate Tube /
