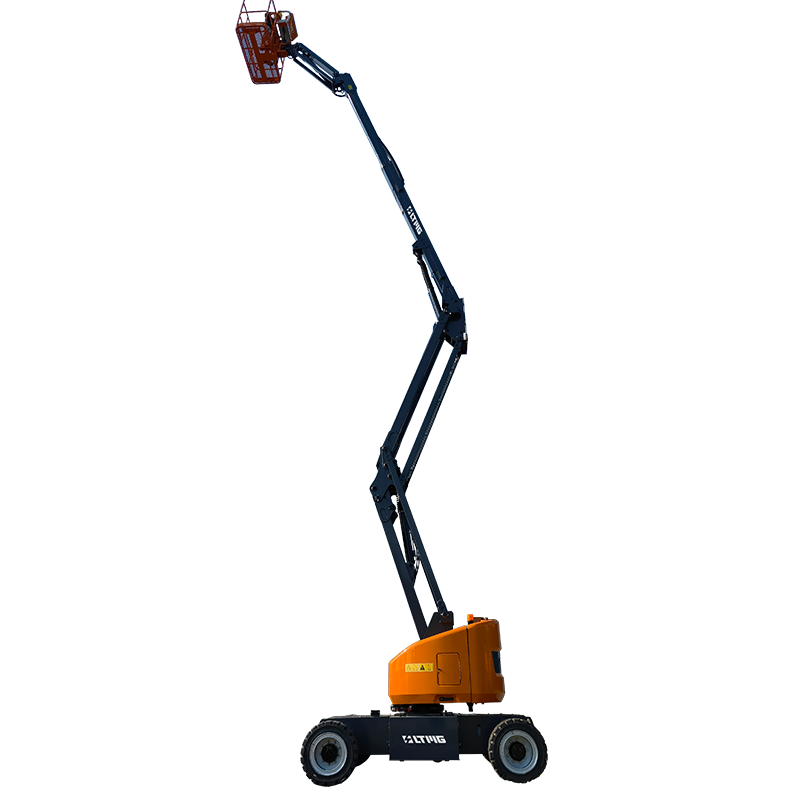

Electric Articulated Boom Lift
LTQE1618
17.7 mMaximum Working Height
15.7 mMaximum Platform Height
230 kgLoad Capacity
Key Features
Compliance with EN280 standards provides enhanced safety protection and dependable performance for aerial work applications.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
型号LTQE1618
Maximum Working Height17.7 m
Maximum Platform Height15.7 m
Maximum Horizontal Reach9.6 m
Up-and-Over Height7.25 m
Length When Stowed7.7 m
Width When Stowed2.32 m
Height When Stowed2.35 m
Platform Dimensions1.53 x 0.76 x 1.1 m
Wheelbase2.28 m
Ground Clearance0.28 m
Load Capacity230 kg
Maximum Platform Occupancy2 persons
Travel Speed - Stowed5.3 km/h
Travel Speed - Raised1.1 km/h
Gradeability - Stowed30 %
Inner Turning Radius1.4 m
Outer Turning Radius4.4 m
Maximum Working Tilt Angle5 °
Tire26 x 12-16 /
Power Source6V x 8 /
Drive and Steering2WD x 2WS /
Standard Weight7300 kg
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
