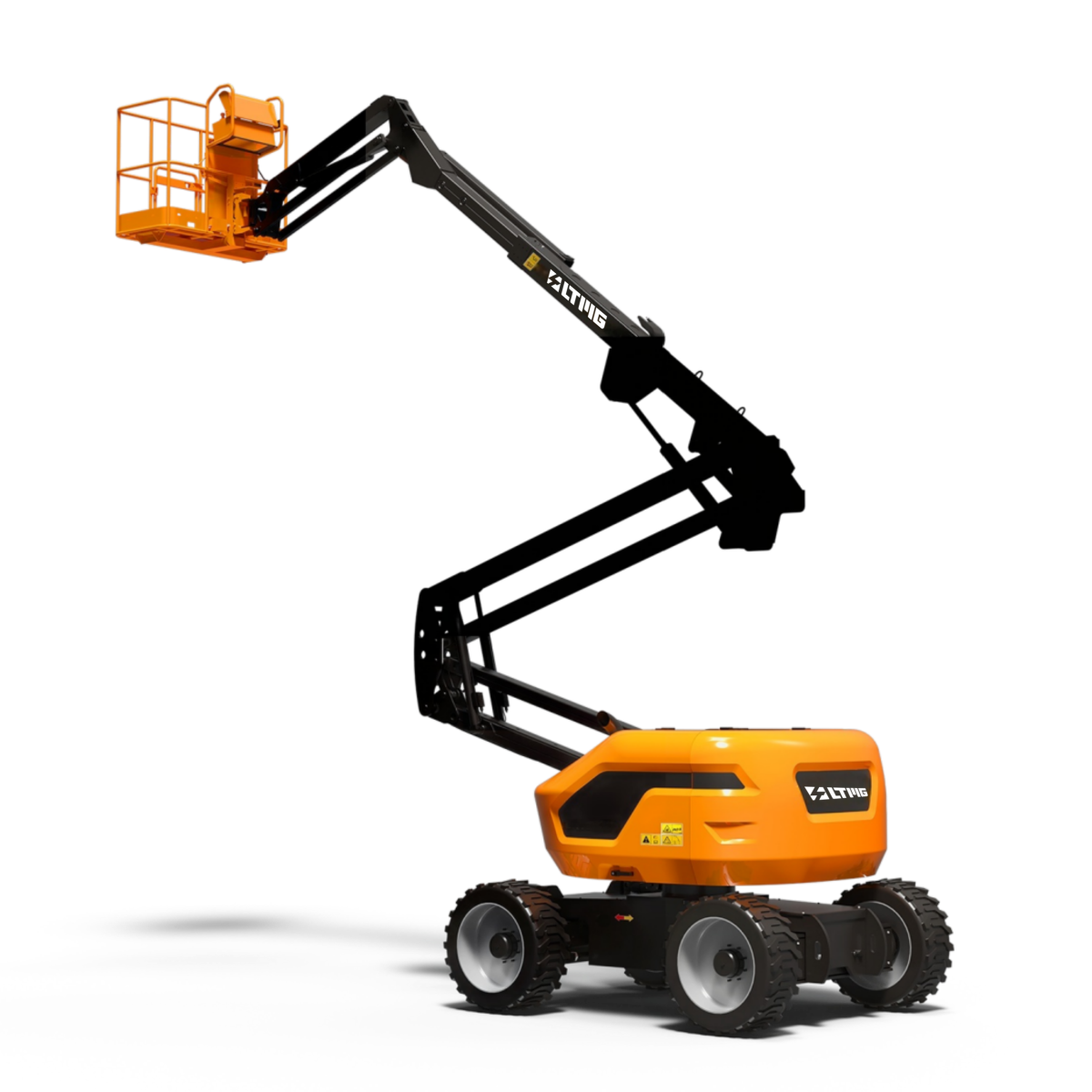

Electric Articulated Boom Lift

LTQE1820

Name: LTQE1820 电动曲臂高空作业车-LTQE1820
Brand: LTMG

20.1 mMaximum Working Height

18.1 mMaximum Platform Height

250 kgLoad Capacity

Request an inquiry

Key Features

Engineered in line with European EN280 safety standards, the machine supports safer operation and dependable performance in demanding aerial work conditions.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号LTQE1820

Maximum Working Height20.1 m

Maximum Platform Height18.1 m

Maximum Horizontal Reach11.7 m

Up-and-Over Height8 m

Length When Stowed9.1 m

Width When Stowed2.49 m

Height When Stowed2.67 m

Platform Dimensions1.83 x 0.76 x 1.1 m

Wheelbase2.54 m

Ground Clearance0.41 m

Load Capacity250 kg

Maximum Platform Occupancy2 persons

Travel Speed - Stowed5.1 km/h

Travel Speed - Raised1.1 km/h

Gradeability - Stowed40 %

Inner Turning Radius2.7 m

Outer Turning Radius5.8 m

Maximum Working Tilt Angle5 °

Tire36 x 14-20 /

Power Source6V x 8 (320Ah) /

Drive and Steering4WD x 2WS /

Standard Weight10200 kg

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
