Key Features
Equipped with well-known domestic brand components that are wear-resistant, reliable, and suitable for various harsh working conditions, ensuring efficient operation.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data

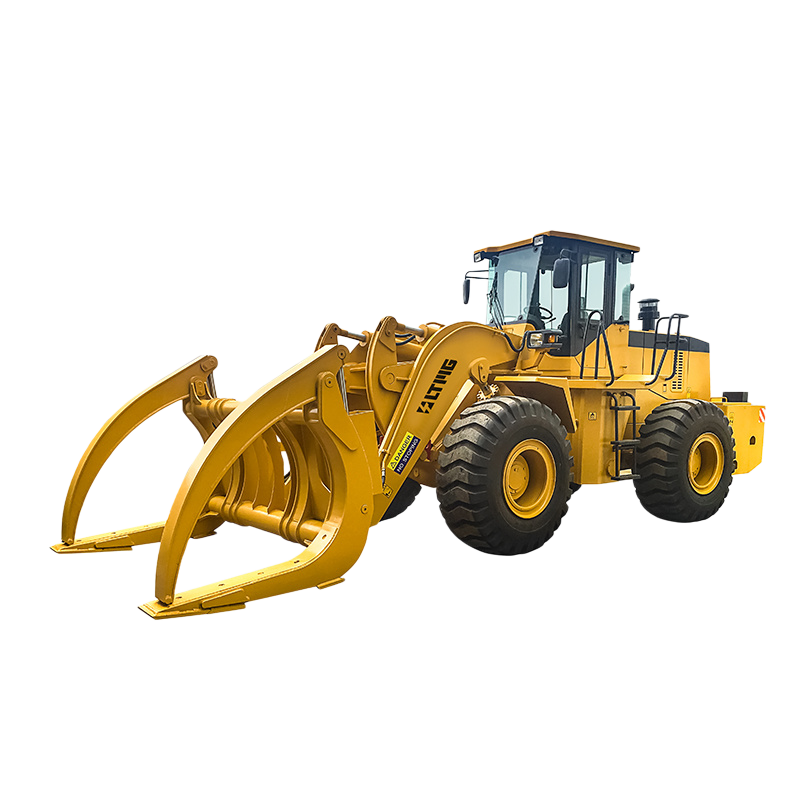

ModelLT10JS
Operating Weight20000 kg
Rated Load10000 kg
Rated Power162 kW
Engine ModelWeichai /
Rated Rotate Speed2000 r/min
Max. Torque≥920 N·m
Forward Gear I0-11.5 km/h
Forward Gear II0-38 km/h
Reverse Gear I0-16 km/h
Grade Ability≥25 °
Overall Length8000 mm
Overall Width2870 mm
Overall Height3300 mm
Turning Angle35 °
Wheelbase3550 mm
Wheel Tread2510 mm
Cycling Time16 s
Tire Model23.5-25 /
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
