Key Features
Equipped with well-known domestic brand components that are wear-resistant, reliable, and suitable for various harsh working conditions, ensuring efficient operation.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data

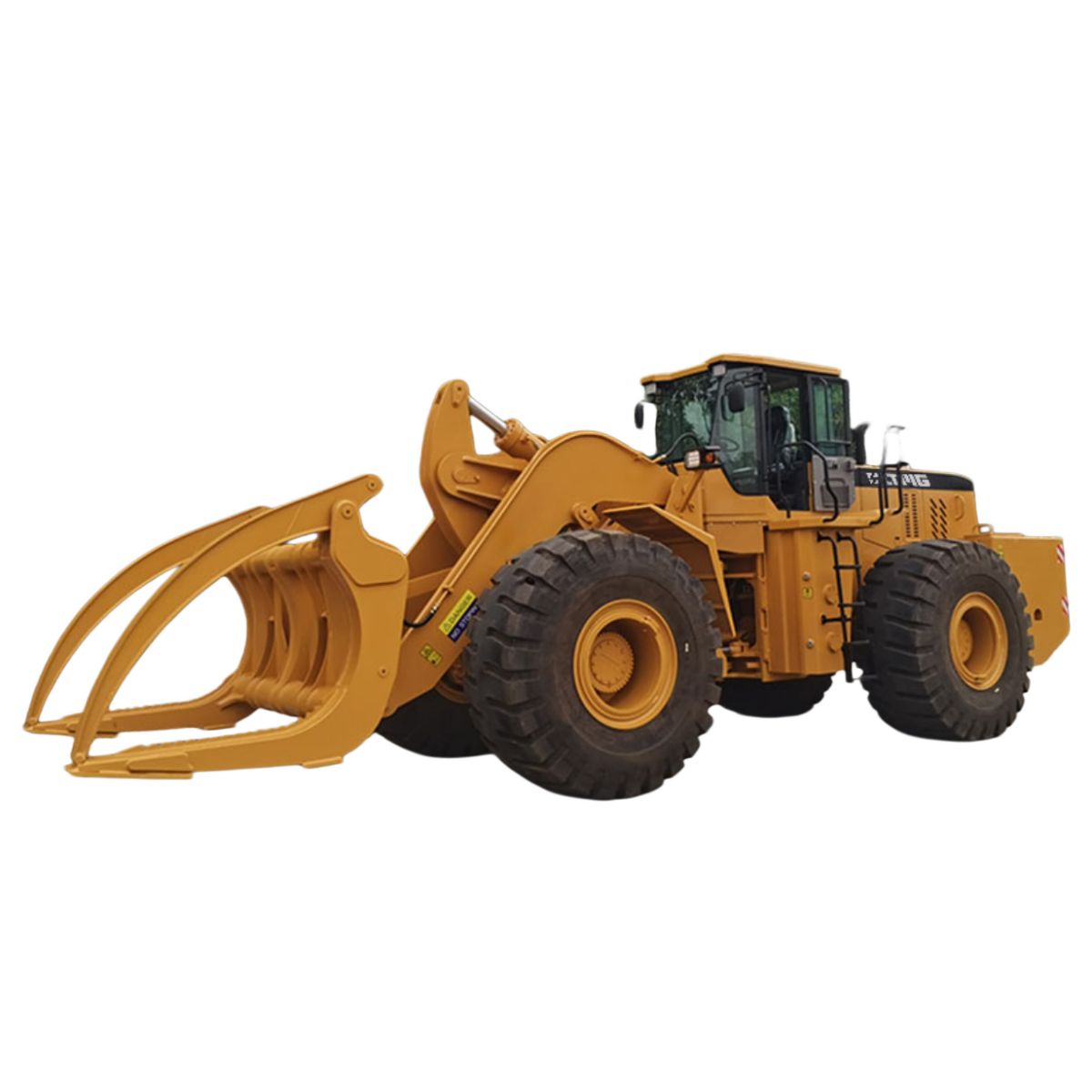

ModelLT23J
Operating Weight31000 kg
Rated Load23000 kg
Rated Power199 kW
Engine ModelWeichai /
Rated Rotate Speed2000 r/min
Max. Torque≥920 N·m
Max. Dumping Height3850 mm
Forward Gear I0-11.5 km/h
Forward Gear II0-38 km/h
Reverse Gear I0-16 km/h
Grade Ability≥25 °
Overall Length8600 mm
Overall Width3230 mm
Overall Height3800 mm
Turning Angle35 °
Wheelbase3600 mm
Wheel Tread2410 mm
Cycling Time18 s
Tire Model29.5R25 /
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
