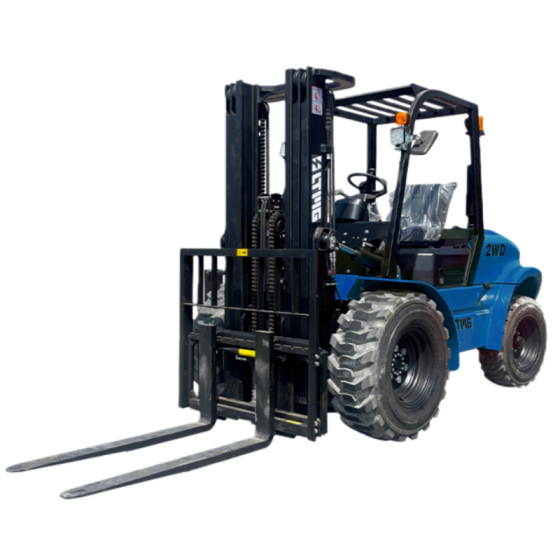

Rough-terrain Forklift
FDR25-E-2WD
2500 kgRated Capacity
500 mmLoad Center
3000 mmLift Height
Key Features
Limited slip gearbox with special differential structure, deep pattern driving tires, large width off-road tires, suitable for rough terrain working.
Technical data
modelFDR25-E-2WD
Power TypeDiesel -
Rated Capacity2500 kg
Load Center500 mm
Lift Height3000 mm
Fork Size1070×122×45 mm
Mast Tilt Angle (F/R)46246 Deg
Turning Radius2910 mm
Ground Clearance220 mm
Front Overhang545 mm
Max. Gradeability17 %
Wheel Base1850 mm
Overall Weight4650 kg
Total Length without Fork3050 mm
Overall/Total Width1550 mm
Mast Lowered Height2185 mm
Mast Extended Height4350 mm
Overhead Guard Height2210 mm
Max Travel Speed (Full Load)22 km/h
Max Lift/Lifting Speed (Full Load)450 mm/s
Front Tyres12-16.5-14PR -
Rear Tyres27x10.5-15PR -
Battery Voltage12 V
Battery Capacity80 Ah
Engine Model495 -
Engine Power42/2650 kW/rpm
Tread (Front/Rear)1250/1205 mm
Tyre TypePneumatic Tyre -
Dropping Speed (Full Load/No Load)600/300 mm/s
Engine ManufacturerXINCHAI -
Max. Rated Torque174/1800-2000 Nm/rpm
Engine Displacement2.98 L
Transmission TypeHydraulic -
Transmission Stage (FWD/RVS)46023 -
