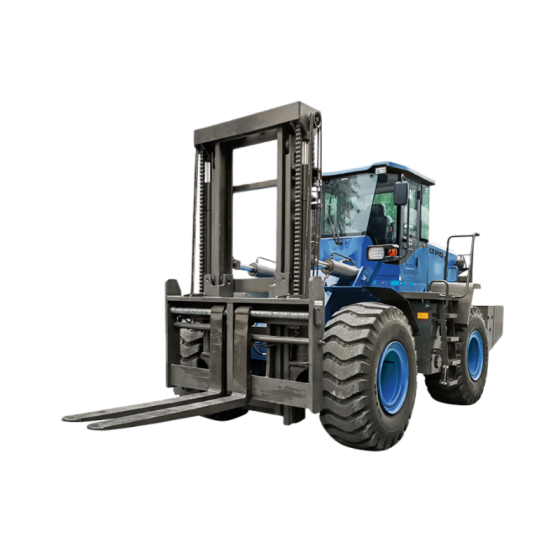

Articulated Rough-terrain Forklift

LTR70

Name: LTR70 装载机式越野叉车-LTR70
Brand: LTMG

7000 kgRated Capacity

600 mmLoad Center

4000 mmLift Height

Request an inquiry

Key Features

Equipped with fully enclosed cab, liquid crystal display instrumentation, all-around rearview mirror.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号LTR70

Power TypeDiesel —

Rated Capacity7000 kg

Load Center600 mm

Lift Height4000 mm

Mast Tilt Angle (F/R)6/12 Deg

Turning Radius4800 mm

Ground Clearance270 mm

Max. Gradeability20 %

Wheelbase2300 mm

Overall Weight9000 kg

Overall Width2100 mm

Max Travel Speed (Full load)30 km/h

Max Lift Speed (Full load)390 mm/s

Front Tyres4*10.0R20 (Steel wire tyre) —

Rear Tyres2*16/70-24 —

Battery24/100 V/Ah

Engine ModelWP6G125E22 —

Engine Power92 kW/rpm

Overall Dimension (Length x Width x Height)4500x2100x2800 mm

Engine ManufacturerWEICHAI —

TransmissionHydraulic —

Working SystemPilot Operating System —

Lowering Speed420 mm/s

Battery Weight720 kg

Driving Motor Power (60 min)30 kW

Lifting Motor Power (S3 15%)2X26 kW

Driving Motor Control ModeMOSFET/AC —

Lifting Motor Control ModeMOSFET/AC —

Service Brake / Parking BrakeHydraulic / Mechanical —

Hydraulic System Working Pressure20 MPa

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
