Diesel Forklift

FD420

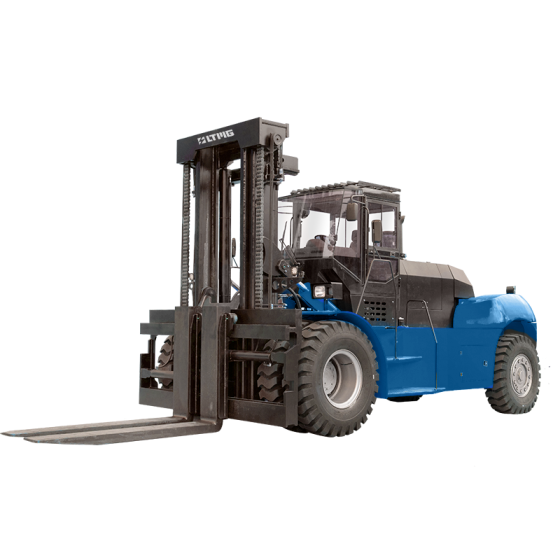

Name: FD420 柴油叉车-FD420
Brand: LTMG

42000 kgRated Capacity

1200 mmLoad Center

3500 mmLift Height

Request an inquiry

Key Features

The high-performance engine features low oil consumption, high quality, strong power, big torque reserves, and good power performance.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

ModelFD420

Power TypeDiesel —

Rated Capacity42000 kg

Load Center1200 mm

Lift Height3500 mm

Fork Size2400*300*120 mm

Mast Tilt Angle (F/R)6/12 Deg

Turning Radius6800 mm

Ground Clearance350 mm

Front Overhang1200 mm

Max. Gradeability20/22 %

Wheel Base4800 mm

Overall Weight54000 kg

Total Length (without forks)7200 mm

Overall Width3350 mm

Mast Lowered Height4100 mm

Mast Extended Height5800 mm

Overhead Guard Height3600 mm

Max. Travel Speed (Full/No load)26/30 km/h

Max. Lifting Speed (Full/No load)230/250 mm/s

Front Tyres16.00-25-32PR —

Rear Tyres16.00-25-32PR —

Battery/ V/Ah

Engine ModelQSM11-C335 —

Engine Power250 kW

Tires Qty (Front/Rear)4/2 —

Wheel Tread (Front)2450 mm

Wheel Tread (Rear)2450 mm

Overall Length (with forks)9600 mm

Fork Carriage Width3300 mm

Wheelbase Center Min. Ground480 mm

Rear Overhang1200 mm

Traction185 kN

Engine ManufacturerCummins —

Cylinder No.6 —

Transmission Gears (F/R)2/1 —

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
