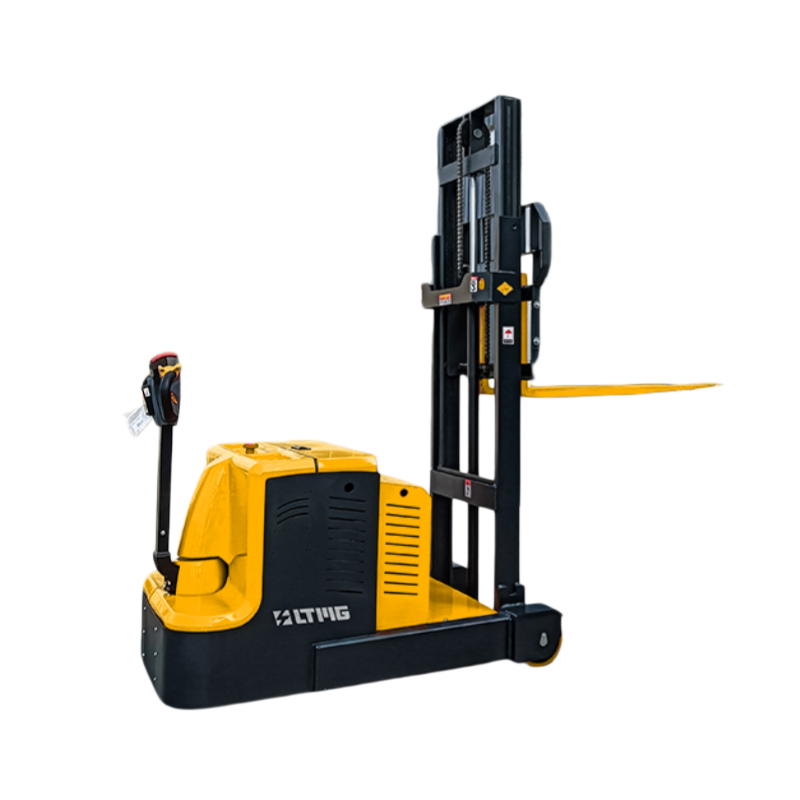

Electric Pallet Stacker
ERB10M
1000 kgRated Capacity
450 mmLoad Center
1670 mmLift Height
Key Features
The entire vehicle responds quickly with precise control, ensuring a long service life and low energy consumption.
Technical data
型号ERB10M
Power TypeElectric /
Drive ModeWalkie /
Rated Capacity1000 kg
Load Center450 mm
Wheelbase1200 mm
Service Weight1400 kg
Tire TypePU /
Driving Wheel Sizeφ210×70 mm
Front Wheel Sizeφ200×80 mm
Wheel Quantity1×+2 /
Front Wheel Track830 mm
Lift Height1670 mm
Fork Lowered Height40 mm
Overall Length2580 mm
Overall Width940 mm
Fork Dimensions920×180×65 mm
Outer Fork Width680 mm
Minimum Ground Clearance40 mm
Aisle Width for Right-Angle Stacking2650 mm
Aisle Width for Right-Angle Stacking (Fork Edge)2350 mm
Turning Radius1500 mm
Travel Speed (Laden/Unladen)3.0/3.6 km/h
Lifting Speed (Laden/Unladen)110/130 mm/s
Lowering Speed (Laden/Unladen)120/100 mm/s
Gradeability (Laden/Unladen)46086 %
Braking MethodElectromagnetic brake /
Drive Motor Power0.75 kW
Lift Motor PowerDC2.2 kW
Battery Capacity2×12V/150Ah Ah
