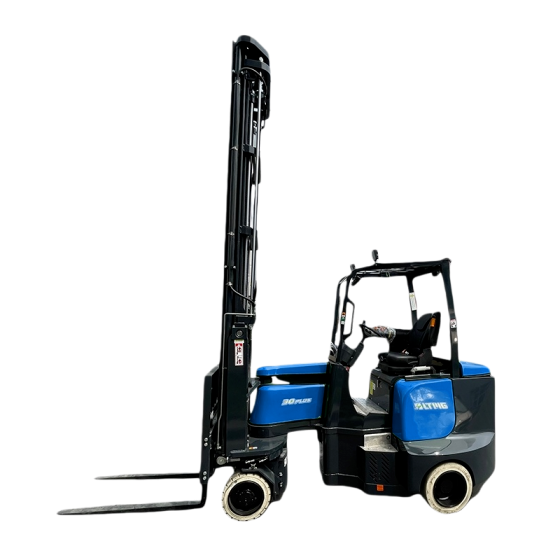

VNA forklift
FBZ30
3000 kgRated Capacity
4300-15000 mmLift Height
1365-5986 mmFull Free Lift Height
Key Features
The aluminum alloy hydraulic oil tank provides rapid heat dissipation and is resistant to rust.
Technical data
型号FBZ30
Rated Capacity3000 kg
Lift Height4300-15000 mm
Full Free Lift Height1365-5986 mm
Closed Mast Height2265-6715 mm
Extended Mast Height5561-16289 mm
Overall Length2780 mm
Rear Chassis Width1600 mm
Front Chassis Width980 mm
Overhead Guard Height2270 mm
Seat Height1220 mm
Ground Clearance50 mm
Load Center Distance600 mm
Wheelbase1735 mm
Minimum Turning Radius2035 mm
Minimum Aisle Width2100 mm
Minimum 90° Turning Aisle Width2700 mm
Service Weight (Including Battery)7800 kg
Service Weight (Excluding Battery)5810 kg
Battery TypeLead-acid (lithium battery optional) /
Battery Voltage / Capacity80/500 V / Ah
Traction Motor TypeAC /
Traction Motor Power19.5 kW
Lift Motor TypeAC /
Lift Motor Power15 kW
Maximum Travel Speed16 km/h
Lifting Speed (Laden / Unladen)0.55/0.70 m/s
Gradeability (Laden / Unladen)18/20 %
Mast Tilt (Backward / Forward)3/1 °
Mast Rotation Angle (Left / Right)220 °
Front Tire Size413*178 mm
Rear Tire Size457*229 mm
