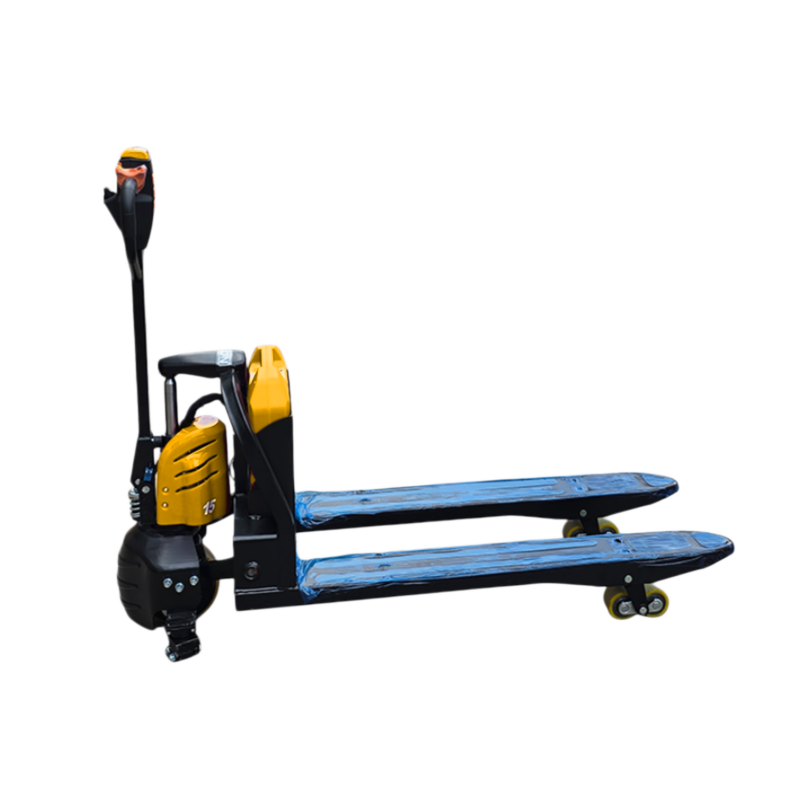

Electric Pallet Stacker
FEP15
1500 kgRated Capacity
600 mmLoad Center
200 mmLift Height
Key Features
Simple, agile and reliable operation with a compact structure and small turning radius. Lightweight design allows use in freight elevators, while delivering low noise and high performance.
Technical data
型号FEP15
Power TypeElectric /
Operation TypePedestrian /
Rated Capacity1500 kg
Load Center600 mm
Axle Center to Fork Face944 mm
Wheelbase1243 mm
Service Weight (with Battery)142 kg
Wheels TypePolyurethane (PU) /
Driving Wheel SizeΦ210×70 mm
Load Wheel SizeΦ80×60 mm
Wheels (Front/Rear)1x/4 /
Load-side Track Width400/535 mm
Lift Height200 mm
Overall Height (with Handle)740/1160 mm
Lowered Fork Height85 mm
Overall Length1603 mm
Length to Fork Face453 mm
Overall Width550/685 mm
Fork Dimensions50/150/1150 mm
Fork Outside Width550/685 mm
Min. Ground Clearance35 mm
Aisle Width (1000×1200 Pallet, Across Forks)1804 mm
Aisle Width (800×1200 Pallet, Along Forks)1854 mm
Min. Turning Radius1398 mm
Travel Speed (Loaded/Unloaded)4.2/4.5 km/h
Max. Gradeability (Loaded/Unloaded)46152 %
Service BrakeElectromagnetic /
Drive Motor Power0.75 kW
Lift Motor Power0.5 kW
Battery Voltage / Capacity24/20; 24/30; 24/40; 24/60 V/Ah
Battery Weight6; 8.2; 10.2; 13.2 kg
Drive Control TypeDC speed control /
Steering TypeMechanical /
Noise Level≤70 dB(A)
Battery StandardNo /
