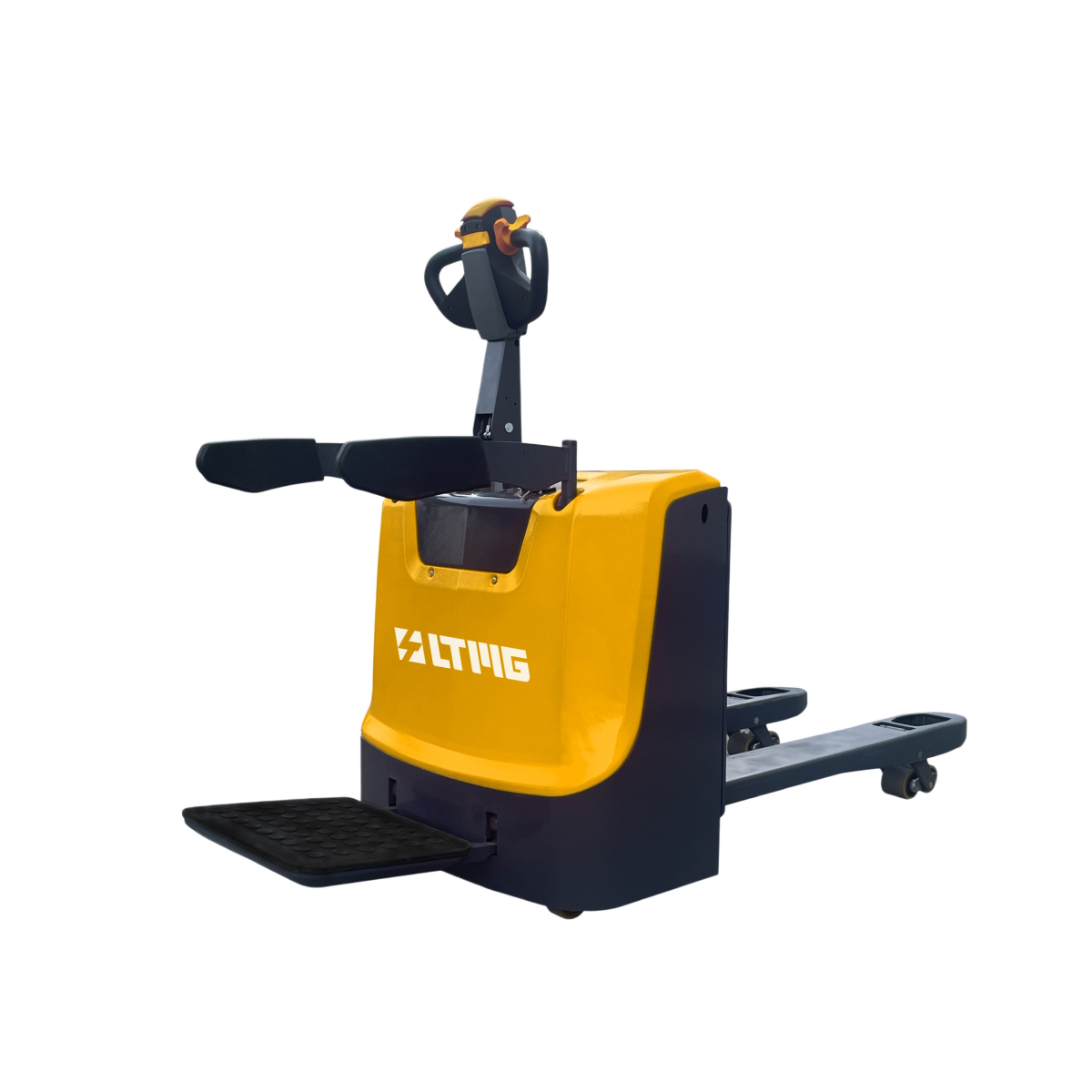

Electric Pallet Stacker

FEP30

Name: FEP30 仓储车-FEP30
Brand: LTMG

3000 kgRated Capacity

600 mmLoad Center

115 mmLift Height

Request an inquiry

Key Features

The compact vehicle design and small turning radius enable efficient handling and operation in narrow spaces.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号FEP30

Power TypeElectric /

Operation TypeStanding /

Rated Capacity3000 kg

Load Center600 mm

Axle Center to Fork Face1039 mm

Wheelbase1567 mm

Service Weight (with Battery)850 kg

Wheels TypePolyurethane (PU) /

Driving Wheel SizeΦ250×75 mm

Load Wheel SizeΦ80×80 mm

Balance Wheel SizeΦ115×55 mm

Wheels (Front/Rear)1x+2/4 /

Drive-side Track Width580 mm

Load-side Track Width355/500 mm

Lift Height115 mm

Overall Height (with Handle)1150/1455 mm

Lowered Fork Height85 mm

Overall Length1925 mm

Length to Fork Face756 mm

Overall Width808 mm

Fork Dimensions50/185/1150 (1220) mm

Fork Outside Width540/685 mm

Min. Ground Clearance35 mm

Aisle Width (1000×1200 Pallet, Across Forks)2560 mm

Aisle Width (800×1200 Pallet, Along Forks)2395 mm

Min. Turning Radius1760 mm

Travel Speed (Loaded/Unloaded)5.2/5.5 km/h

Lift Speed (Loaded/Unloaded)15/18 mm/s

Lowering Speed (Loaded/Unloaded)35/16 mm/s

Max. Gradeability (Loaded/Unloaded)6/8 %

Service BrakeElectromagnetic /

Drive Motor Power3 kW

Lift Motor Power2.2 kW

Battery Voltage / Capacity24/210 V/Ah

Battery Weight210 kg

Drive Control TypeAC speed control /

Steering TypeEPS /

Noise Level≤70 dB(A)

Battery StandardNo /

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
