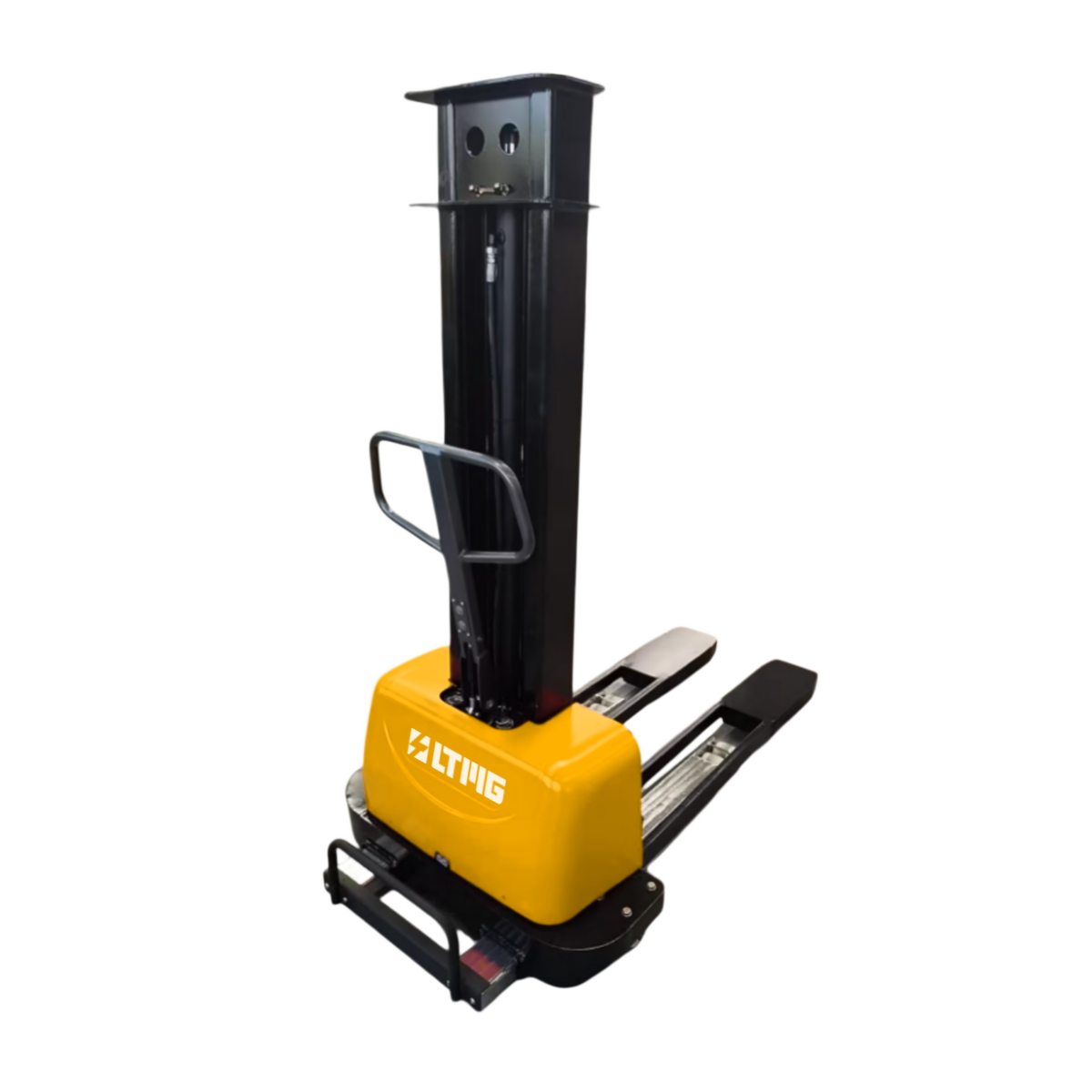

Semi-Electric Self-Lifting Stacker
SERB07
700 kgRated Capacity
400 mmLoad Center
800/900/1000/1100/1200/1300/1500/1600 mmLift Height
Key Features
The equipment is reinforced with a thickened steel plate for greater structural rigidity, providing more stable loading and unloading while significantly enhancing load capacity for heavier-duty applications.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
型号SERB07
Power TypeLead-acid Battery /
Operation TypeWalkie /
Rated Capacity700 kg
Load Center400 mm
Wheelbase788 mm
Service Weight243/247/251/255/259/263/272/276 kg
Front Wheel Sizeφ80×60 mm
Universal Wheel Sizeφ100×50 mm
Middle Wheel Sizeφ65×30 mm
Front Wheel Track405 mm
Rear Wheel Track690/810 mm
Overall Height (Mast Lowered)1155/1255/1355/1455/1555/1655/1855/1955 mm
Lift Height800/900/1000/1100/1200/1300/1500/1600 mm
Overall Length1552 mm
Overall Width891/929 mm
Fork Length1150 mm
Fork Width190 mm
Fork Thickness60 mm
Distance Between Forks565/685 mm
Outrigger Length735 mm
Maximum Lifting Speed55 mm/s
Maximum Lowering Speed100 mm/s
Lift Motor Power0.8 kW
Battery Voltage12 V
Battery Capacity52 Ah
Battery Weight13.5 kg
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
