Electric Forklift

FB20(Li-ion)

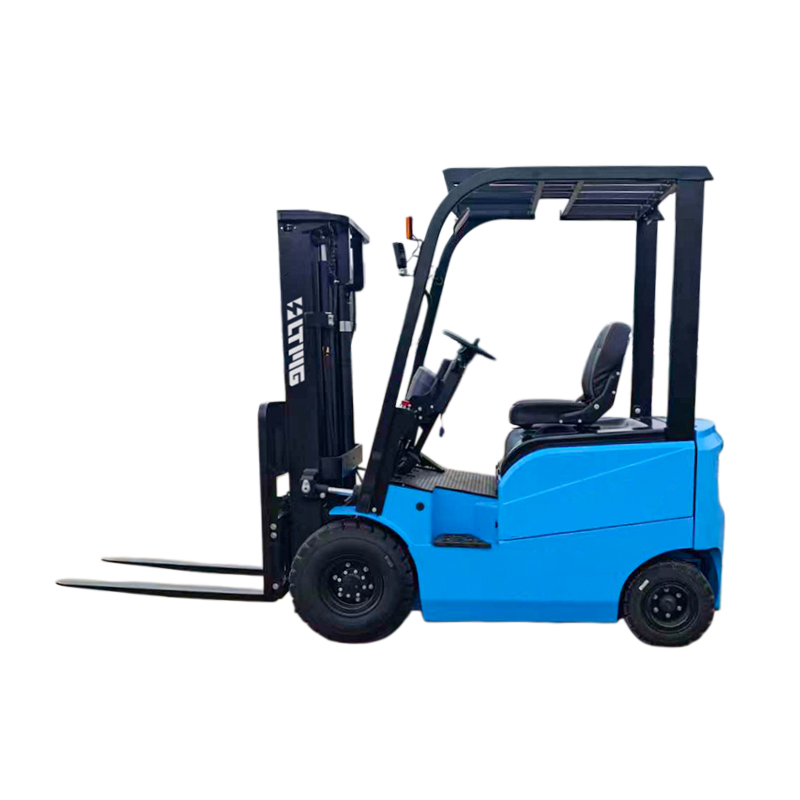

Name: FB20(Li-ion) 电动叉车-FB20
Brand: LTMG

2000 kgRated Capacity

500 mmLoad Center

3000 mmLift Height

Request an inquiry

Key Features

Widened design increases vision by 20%. Customized special-shaped steel ensures a sturdier structure, high load-bearing strength, and reliable operation.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号FB20(Li-ion)

Power TypeElectric -

Rated Capacity2000 kg

Load Center500 mm

Lift Height3000 mm

Fork Size1070×122×40 mm

Mast Tilt Angle (F/R)46185 Deg

Turning Radius2335 mm

Ground Clearance115 mm

Front Overhang460 mm

Max. Gradeability18/20 %

Wheel Base1650 mm

Overall Weight3200/3020 kg

Total Length without Fork2535 mm

Overall/Total Width1170 mm

Mast Lowered Height2005 mm

Mast Extended Height4035 mm

Overhead Guard Height2125 mm

Max. Travel Speed (Full Load/No Load)14/15 km/h

Max. Lift Speed (Full Load/No Load)330/400 mm/s

Front Tyres7.00-12-12PR -

Rear Tyres6.00-9-10PR -

Battery Voltage/Capacity76.8/150 V/Ah

Voltage Plateau80 V

Operation TypeSeat -

Rear Overhang415 mm

Axle Load (Full Load, Front/Rear)4730/470 kg

Axle Load (No Load, Front/Rear)1410/1790 kg

Tire TypePneumatic tire -

Number of Wheels (x=drive wheels)2x/2 -

Front Track Width970 mm

Rear Track Width960 mm

Free Lift Height130 mm

Outer Distance Between Forks (Min/Max)250-1040 mm

Mast Ground Clearance (No Load)110 mm

Lowering Speed (Full Load/No Load)470/450 mm/s

Max. Traction15000 N

Service BrakingHydraulic -

Parking BrakingMechanical -

Rated Power of Traction Motor8AC kW

Rated Power of Oil Pump Motor10AC kW

Motor Type/Protection Levelac asynchronous/IP54 -

Battery TypeLithium iron phosphate battery -

Standard Battery Weight180 kg

Heating Form/Protection Level of BatteryLow temperature heating/IP54 -

MCU Motor Controller TypeMOSFET/AC -

MCU Motor Controller ManufacturerJIACHEN -

MCU Motor Controller ModelACM III 80C350 -

Hydraulic System Working Pressure18.5 Mpa

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
