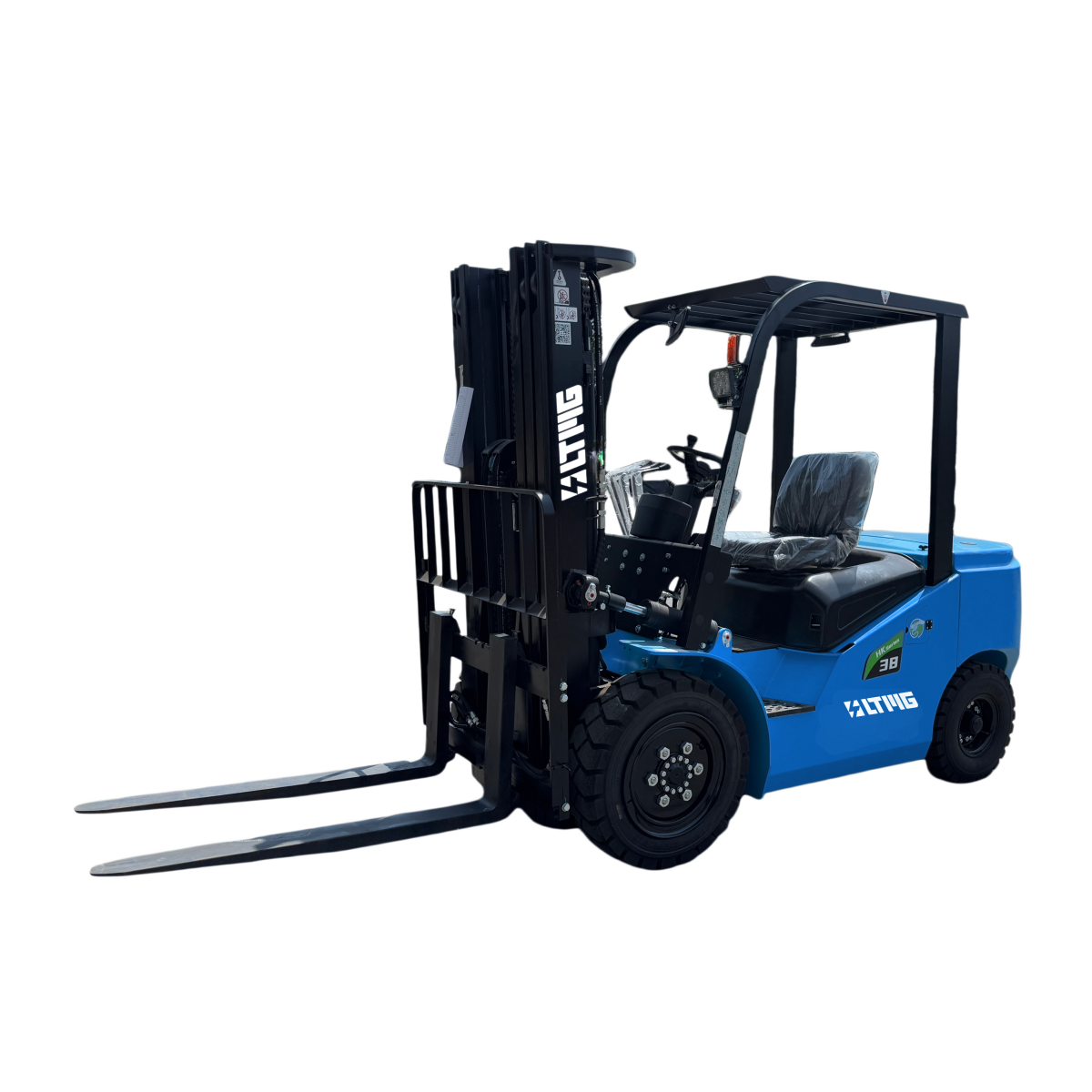

Electric Forklift

FB40(Li-ion)

Name: FB40(Li-ion) 电动叉车-FB40
Brand: LTMG

4000 kgRated Capacity

500 mmLoad Center

3000 mmLift Height

Request an inquiry

Key Features

Features a 38 large-ratio gearbox with direct motor drive to minimize energy loss and significantly boost travel speed and gradeability.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号FB40(Li-ion)

Power TypeElectric -

Rated Capacity4000 kg

Load Center500 mm

Lift Height3000 mm

Fork Size1070×122×50 mm

Mast Tilt Angle (F/R)46185 Deg

Turning Radius2500 mm

Ground Clearance140 mm

Front Overhang490 mm

Max. Gradeability18/25 %

Wheel Base1750 mm

Overall Weight5000/4760 kg

Total Length without Fork2700 mm

Overall/Total Width1240 mm

Mast Lowered Height2135 mm

Mast Extended Height4240 mm

Overhead Guard Height2155 mm

Max Travel Speed (Full load/No load)15/16 km/h

Max Lift/Lifting Speed (Full load/No load)310/370 mm/s

Front Tyres250-15-16PR -

Rear Tyres6.50-10-10PR -

Battery76.8/280 V/Ah

Voltage Plateau80 V

Operation TypeSeat -

Rear Overhang470 mm

Axle Load (Full Load, Front/Rear)8487/513 kg

Axle Load (No Load, Front/Rear)3160/1840 kg

Tire TypePneumatic tire -

Number of Wheels (x=Drive Wheels)2x/2 -

Front Track Width1000 mm

Rear Track Width970 mm

Free Lift Height155 mm

Max. Height During Operation4240 mm

Outer Distance Between Forks (Min/Max)250-1085 mm

Mast Ground Clearance (No Load)125 mm

Lowering Speed (Full load/No load)380/370 mm/s

Max. Traction23000 N

Service BrakingHydraulic -

Parking BrakeMechanical -

Rated Power of Traction Motor (S2 60min)16AC kW

Rated Power of Oil Pump Motor (S3 15%)24AC kW

Motor Type / Protection Levelac asynchronous \ IP54 -

Battery TypeLithium battery -

Standard Battery Weight240 kg

Battery Heating Form / Protection LevelLow temperature heating \ IP54 -

MCU Motor Controller TypeMOSFET/AC -

MCU Motor Controller ModelACM III 80C450 -

Hydraulic System Working Pressure18.5 Mpa

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
