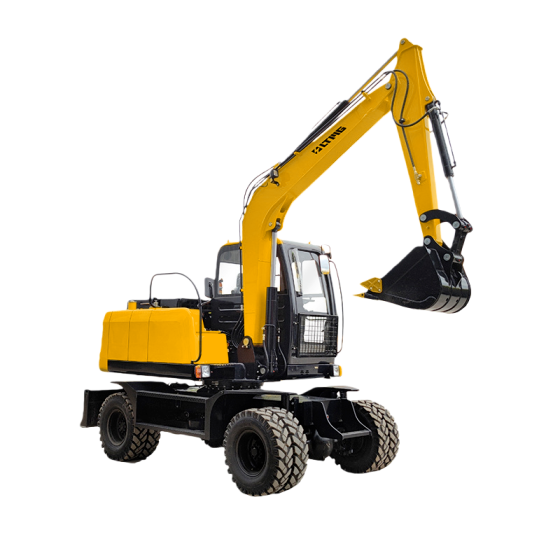

Diesel Wheel Excavator
LWE70
7000 kgOperating Weight
62.5kw/ 2200rpm kWRated Power
0.21 m³Bucket Capacity
Key Features
Equipped with a 62.5kW high-performance engine and delivering 45kN of maximum digging force, ensuring superior productivity under heavy-duty loads.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
ModelLWE70
Operating Weight7000 kg
Engine ModelYC4DK85 /
Rated Power62.5kw/ 2200rpm kW
Bucket Capacity0.21 m³
Swing Speed0-11 rpm
Traveling / Walking Speed0-28 km/h
Climbing Ability25 °
Max. Excavation Height5730 mm
Max. Unloading Height4120 mm
Max. Excavation Depth3380 mm
Tail Turning Radius1940 mm
Overall Length5930 mm
Overall Width2205 mm
Overall Height2787 mm
Min. Ground Clearance260 mm
Undercarriage Width2250 mm
Max. Digging Force45 kN
Max. Digging Radius5830 mm
Max. Dozer Cutting Distance130 mm
Max. Dozer Lifting Distance310 mm
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
