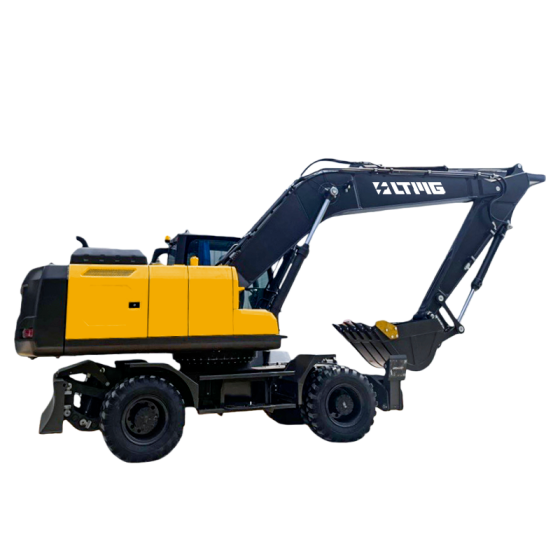

Diesel Wheel Excavator

LWE210

21000 kgOperating Weight
153kw/2000RPM kWRated Power
1.1 m³Bucket Capacity

Key Features

Equipped with a high-performance Cummins engine delivering 140kN of maximum bucket digging force, providing the robust power needed for demanding heavy-duty tasks.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

ModelLWE210
Operating Weight21000 kg
Engine ModelCummins 6BTAA5.9 /
Rated Power153kw/2000RPM kW
Bucket Capacity1.1 m³
Swing Speed0-12 rpm
Traveling / Walking Speed0-35 km/h
Climbing Ability25 °
Max. Excavation Height10329 mm
Max. Unloading Height7397 mm
Max. Excavation Depth6052 mm
Min. Turning Radius3548 mm
Tail Turning Radius2412 mm
Overall Length1006 mm
Overall Width2500 mm
Overall Height3515 mm
Min. Ground Clearance380 mm
Axle Base2850 mm
Wheel/Track Distance1920 mm
Max. Digging Force100 kN
Max. Digging Radius10283 mm

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
