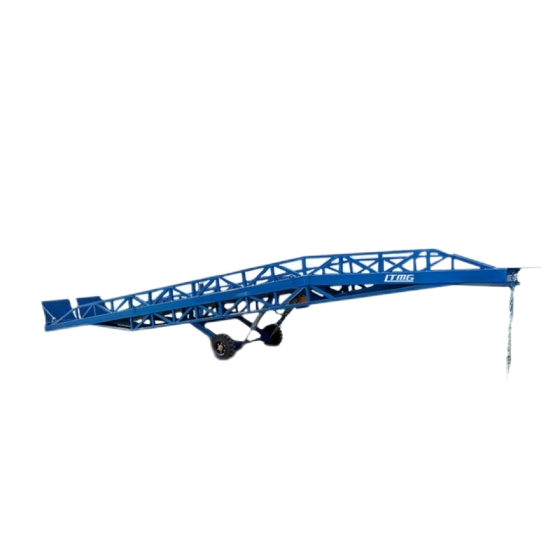

Loading Ramp
FR80
11150×2100×1100 mmOverall Dimensions (L×W×H)
1100-1800 mmVariable Working Range
8000 kgRated Load
Key Features
The loading ramp, characterized by its high strength and robust bearing capacity, remains resistant to deformation even during prolonged operation under heavy loads. This durable loading ramp supports substantial weights without bending or warping, ensuring it handles the rigors of continuous heavy use without losing structural integrity.
Technical data
型号FR80
Overall Dimensions (L×W×H)11150×2100×1100 mm
Bridge Length11400 mm
Bridge Width2000 mm
Variable Working Range1100-1800 mm
Rated Load8000 kg
Main Beam Dimensions & Qty160×80×4 (5 roots) mm
Auxiliary Beam Dimensions100×50×4 mm
Tongue Plate Thickness14 mm
Hydraulic Cylinder Spec & QtyΦ80×Φ50 (2 branches) mm
Solid Tire Specification600-9 /
