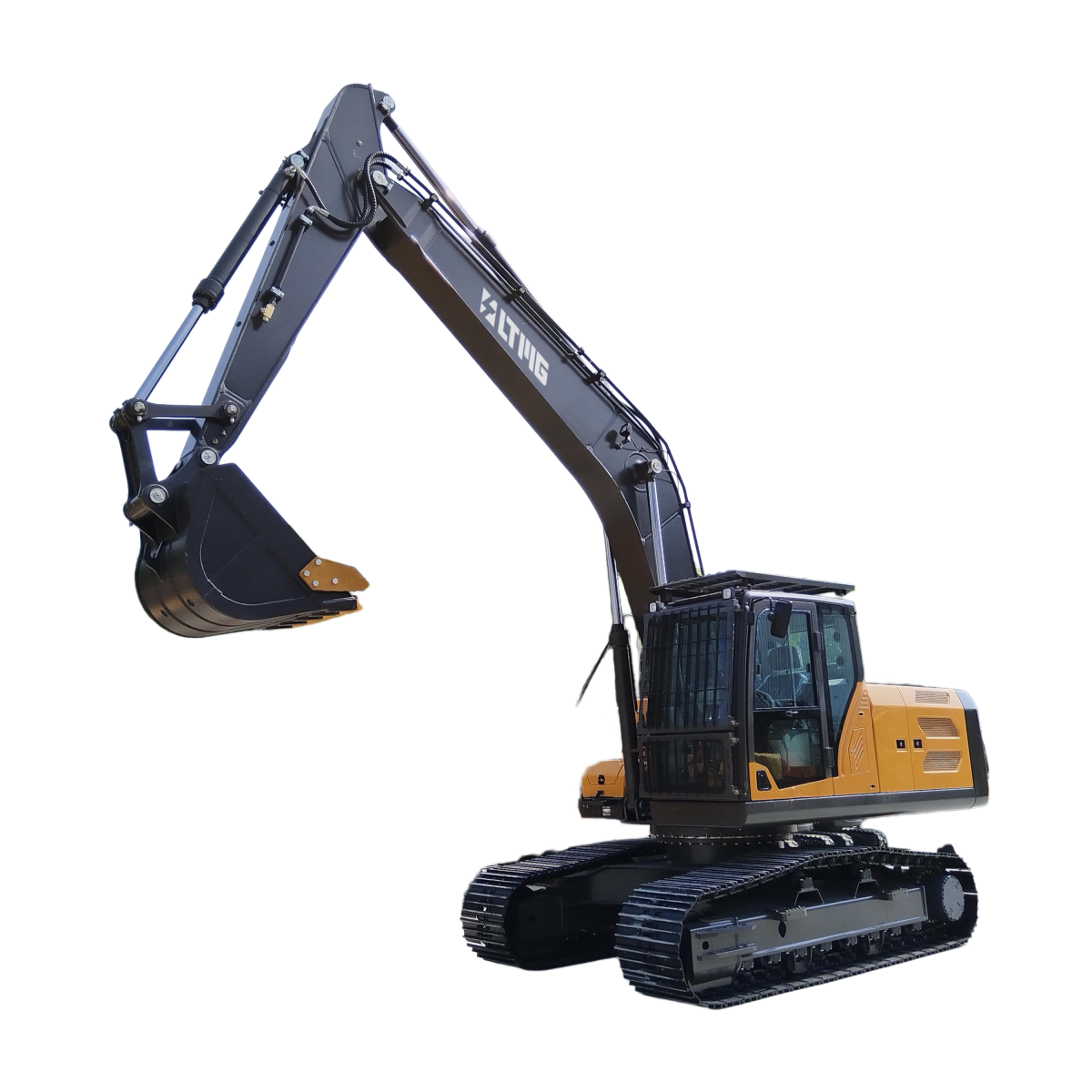

Diesel Tracked Excavator
LTE210
22500 kgOperating Weight
129/2200 kW/rpmRated Power
1 m3Bucket Capacity
Key Features
Powered by a high-performance diesel engine designed for long-lasting durability, reliable output, and low maintenance costs.
Technical data
型号LTE210
Operating Weight22500 kg
Engine ModelWeichai WP6G175E21 /
Rated Power129/2200 kW/rpm
Bucket Capacity1 m3
Swing Speed11 rpm
Climbing Ability35 %
Max. Excavation Height/ mm
Max. Unloading Height/ mm
Max. Excavation Depth/ mm
Max. Torque680/1400-1600 Nm/rpm
Displacement6.75 L
Main System Pressure34.3 MPa
Max. Digging Radius/ mm
Bucket Digging Force140 kN
Arm Digging Force99 kN
Max. Tractive Force175 kN
Walking Speed/ km/h
Main Pump Flow Rate218.5*2+19 L/min
Track Width/ mm
Engine Type6-cyl, 105*130, Water-cooled, Turbo-charged /
Emission StandardChina II /
Main Pump Brand/ModelZhongrun AP4V0112 /
