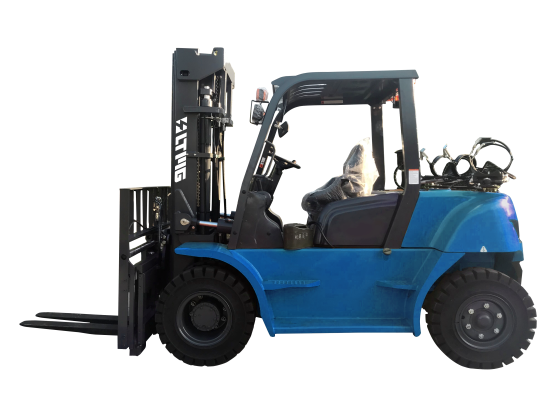

LPG & Gasoline Forklift
FG60
6000 kgRated Capacity
600 mmLoad Center
3000 mmLift Height
Key Features
Early-warning of instruments service is provided.Regular early-waming of instruments service realizes intelligent service.
Technical data
型号FG60
Power TypeLPG /
Rated Capacity6000 kg
Load Center600 mm
Lift Height3000 mm
Fork Size1220×150×60 mm
Mast Tilt Angle (F/R)6°/12° Deg
Turning Radius3250 mm
Ground Clearance200 mm
Front Overhang590 mm
Max. Gradeability20 %
Wheel Base2250 mm
Overall Weight8750 kg
Total Length without Fork3440 mm
Overall Width2010 mm
Mast Lowered Height2500 mm
Mast Extended Height (With Backrest)4415 mm
Overhead Guard Height2430 mm
Max. Travel Speed (Full Load)30 km/h
Max. Lift Speed (Full Load)500 mm/s
Front Tyres8.25-15-14PR /
Rear Tyres8.25-15-14PR /
Battery12/120 V/Ah
Transmission TypeHydraulic /
Transmission Stage (FWD/RVS)46055 /
Engine ModelPSI4.3L /
ManufacturerPSI /
Engine Power76/2300 kW/rpm
Max. Rated Torque324/1700 N·m/rpm
No. of Cylinders6 /
Bore × Stroke101.6 × 88.4 mm
Displacement4300 cc
Fuel Tank Capacity125 L
