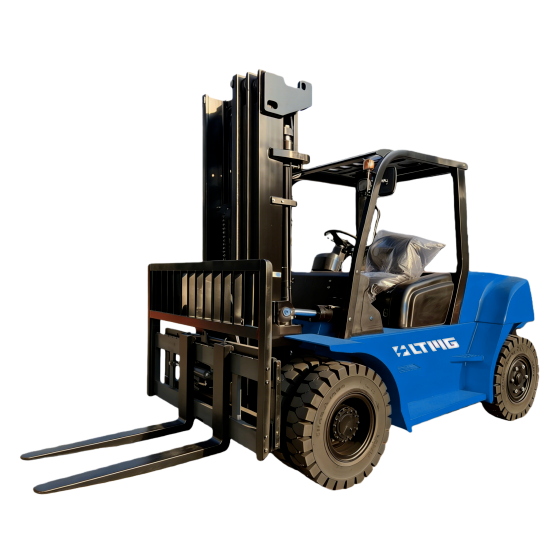

LPG & Gasoline Forklift
FG70
7000 kgRated Capacity
600 mmLoad Center
3000 mmLift Height
Key Features
Instrument early-warning services are provided. Regular system maintenance enables intelligent service.
Technical data
型号FG70
Power TypeLPG —
Rated Capacity7000 kg
Load Center600 mm
Lift Height3000 mm
Fork Size1220×150×70 mm
Mast Tilt Angle (F/R)6°/12° Deg
Turning Radius3350 mm
Ground Clearance200 mm
Front Overhang595 mm
Max. Gradeability20 %
Wheel Base2250 mm
Overall Weight9750 kg
Total Length without Fork3565 mm
Overall Width2010 mm
Mast Lowered Height2500 mm
Mast Extended Height4415 mm
Overhead Guard Height2430 mm
Max. Travel Speed (Full load)30 km/h
Max. Lift Speed (Full load)460 mm/s
Front Tyres8.25-15-14PR —
Rear Tyres8.25-15-14PR —
Battery12/120 V/Ah
Engine ModelPSI4.3L —
Engine Power76/2300 kW/rpm
Transmission TypeHydraulic —
Transmission Stage (FWD/RVS)46055 —
Engine ManufacturerPSI —
Max. Rated Torque324/1700 N·m/rpm
No. of Cylinder6 —
Bore x Stroke101.6×88.4 mm
Displacement4300 cc
Fuel Tank Capacity125 L
