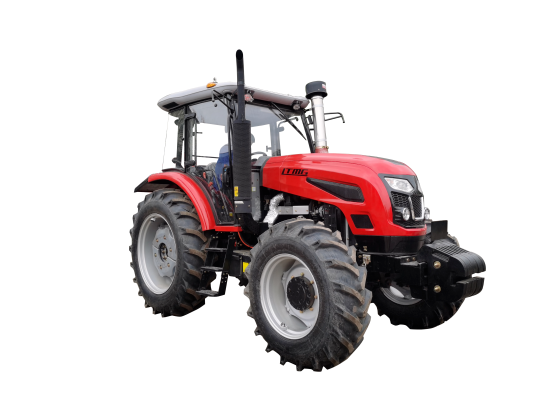

Diesel wheeled Tractor
LTD1804
5280 kgMinimum Operating Weight
12F 4R /Gearbox
132.4 kWRated Power
Key Features
Uses a YTO diesel engine with good reliability, large torque reserve, low fuel consumption and high economic efficiency.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
型号LTD1804
ModelLTD1804 /
Horsepower180 HP
Drive Type4X4 /
Overall Length4,960 mm
Overall Width2270 mm
Overall Height3,190 mm
Wheelbase2570 mm
Front Track Width1,910 mm
Rear Track Width1622 mm
Minimum Ground Clearance470 mm
Minimum Operating Weight5280 kg
Gearbox12F 4R /
Forward Speed0.34-43.33 km/h
Reverse Speed0.34-43.33 km/h
Engine ModelLR6M3LR22/1324 /
Rated Power132.4 kW
Rated Speed2200 r/min
Front Tire14.9-26 /
Rear Tire18.4-38 /
Steering System TypeFull hydraulic front-wheel steering /
Maximum Lifting Force≥ 31.78 kN
PTO TypeRear-mounted semi-independent or independent /
PTO Speed540/1000 r/min
PTO Power112.5 kW
Control ModeHeight adjustment, floating control /
Maximum Drawbar Pull32.3 kN
Front Counterweight600 kg
Rear Counterweight360 kg
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
