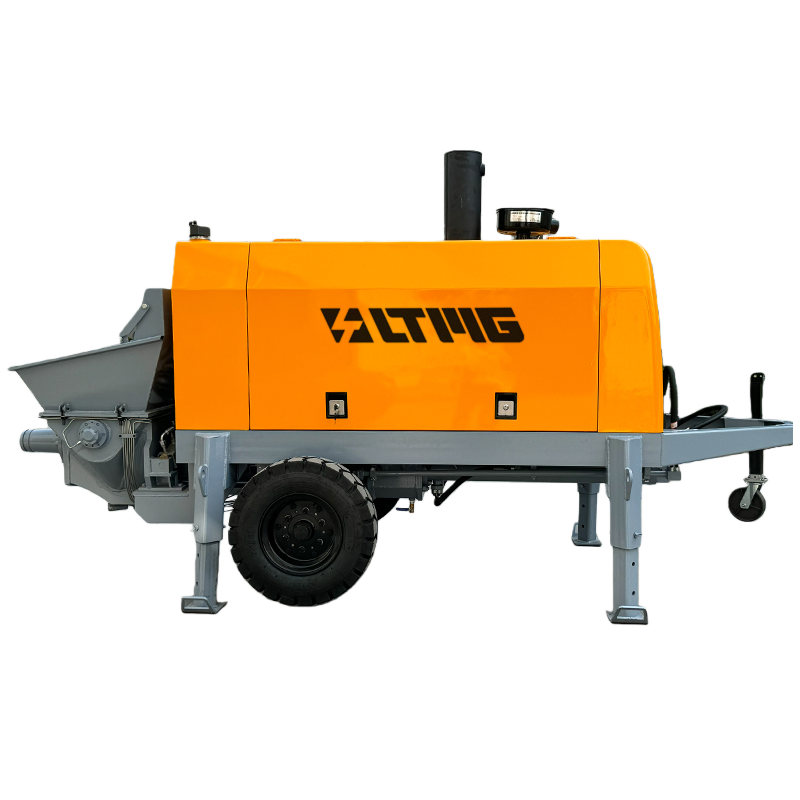

Concrete Pump
HBT30-10-48
30/16 m3/hMaximum theoretical concrete output (L./H.)
8/4 MPaMaximum concrete pumping pressure (H. /L.)
8.3 L/hRated fuel consumption
Key Features
Automatically adjusts the diesel engine speed to ensure smooth operation while improving fuel efficiency.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
型号HBT30-10-48
Maximum theoretical concrete output (L./H.)30/16 m3/h
Maximum concrete pumping pressure (H. /L.)8/4 MPa
Concrete valve typeS Valve /
Concrete cylinder diameter × stroke lengthФ140×1000 mm
Hopper capacity × hopper height400×1100 L×mm
Maximum aggregate diameterPebbles :35
Gravel : 30 mm
Maximum delivering distance (vertical / horizontal)120/350 m
Outlet inner diameterФ100 mm
Delivering pipe inner diameterФ100 mm
Lubrication systemManual greaser /
High-low pressure conversionYes /
Remote controlWireless /
Diesel engine4102ZD /
Rated power48 kW
Rated speed1800 r/min
Rated fuel consumption8.3 L/h
Hydraulic systemOpen loop /
Pumping system pressure16 MPa
Stirring system pressure12 MPa
Hydraulic tank capacity180 L
Length×width×height4850×1670×1680 mm
Main weight3100 kg
Total weight4500 kg
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
