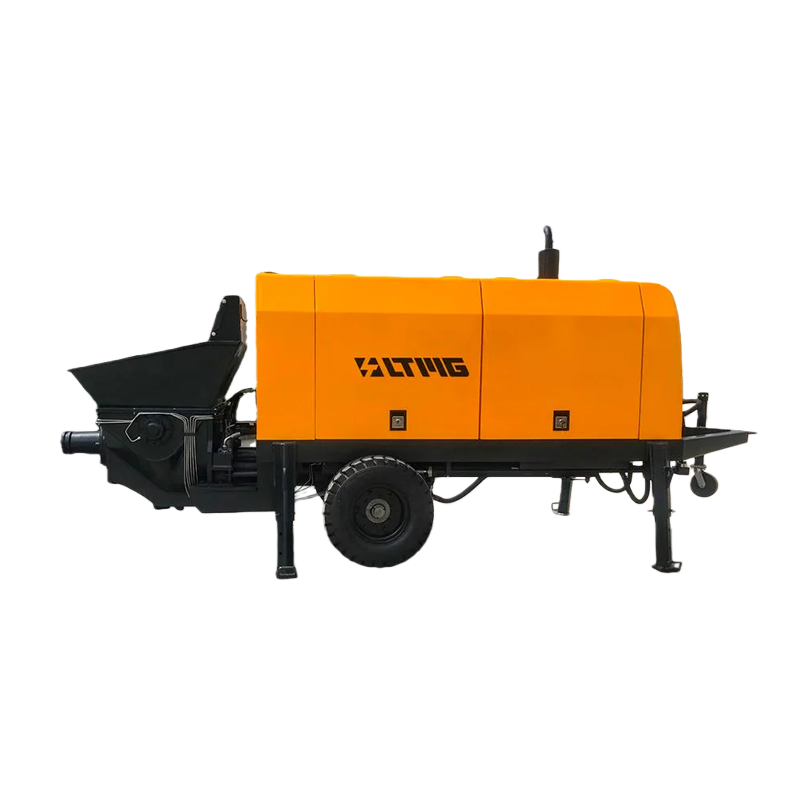

Concrete Pump
HBT50-13-72
48/29 m3/hMaximum theoretical concrete output (L./H.)
13/7 MPaMaximum concrete pumping pressure (H. /L.)
12.5 L/hRated fuel consumption
Key Features
Automatically adjusts the diesel engine speed to ensure smooth operation while improving fuel efficiency.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
型号HBT50-13-72
Maximum theoretical concrete output (L./H.)48/29 m3/h
Maximum concrete pumping pressure (H. /L.)13/7 MPa
Maximum delivering distance (vertical / horizontal)180/550 m
Concrete valve typeS Valve /
Concrete cylinder diameter × stroke lengthФ180×1000 mm
Outlet inner diameterФ125 mm
Delivering pipe inner diameterФ125 mm
Maximum aggregate diameterPebbles : 50
Gravel : 40 mm
Hopper capacity × hopper height500×1100 L×mm
Lubrication systemAutomatic greaser /
High-low pressure conversionYes /
Remote controlWireless /
Diesel engineR4105ZD2 /
Rated power72 KW
Rated speed1800 r/min
Rated fuel consumption12.5 L/h
Hydraulic systemOpen loop /
Hydraulic pump displacement112 mL/r
Pumping system pressure32 MPa
Stirring system pressure12 MPa
Hydraulic tank capacity320 L
Length × width × height4850×1670×1700 mm
Main weight3360 Kg
Total weight4500 Kg
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
