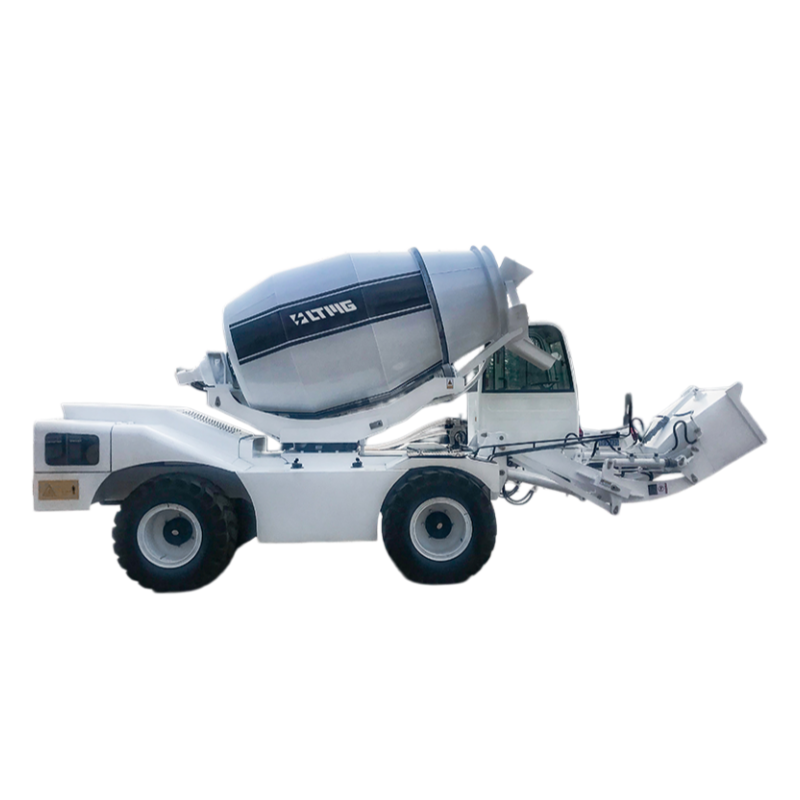

Diesel Self-Loading Concrete Mixer

LTM30

Name: LTM30 柴油自上料搅拌车-LTM30
Brand: LTMG

3 m³Output per Batch

12 m³/hHourly Output

0.35 m³Bucket Capacity

Request an inquiry

Key Features

The leading automatic feeding and mixing system, combined with an electronic metering system, ensures precise automatic material weighing, mixing, and discharging, guaranteeing high efficiency and consistency while minimizing human error.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号LTM30

TypeIntegral frame chassis movable, self loading, mixing, transporting /

Output per Batch3 m³

Batch Cycle Time≤15 min/batch

Batches per Hour4 batch/h

Hourly Output12 m³/h

Operating Weight7450 kg

EngineYuchai four-cylinder, intercooled turbo /

Engine Speed2200 rpm

Rated Power85 kW

Drive Type4×4 /

Steering TypeRear wheels steering /

High Speed36.5 km/h

Low Speed6.5 km/h

GearboxFour forwards, four backwards /

Tire16/70-20 steel wire tyre /

Drum Geometric Volume4.2 m³

Optimal Mixing Capacity2.6-3.0 m³

Drum Rotation / Discharge270° tank rotation; no dead angle for discharging around the vehicle °

Bucket Capacity0.35 m³

Bucket DischargeHydraulic gate, electric control /

Operation ControlElectric control button four-way pilot handle /

Water SupplyHydraulic driving self-priming pump /

Water Tank Capacity370 L

Diesel Tank Capacity180 L

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
