Key Features
F4/R4 synchromesh mechanical shift transmission and a maintenance-free axle ensure superior productivity and long-term durability.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data

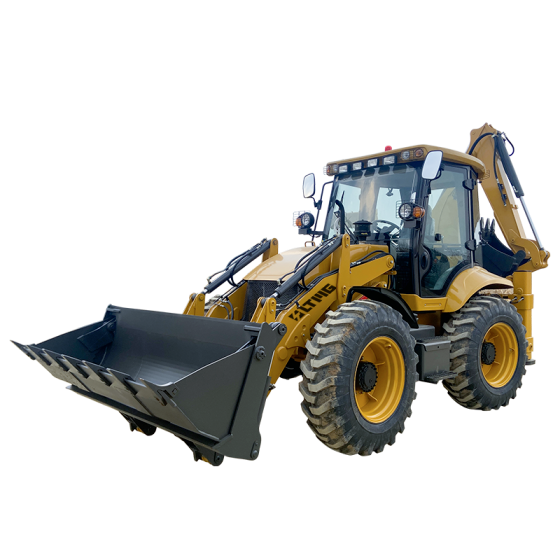

ModelBLT388H
Overall Dimensions (L × W × H)6554 × 2543 × 3660 mm
Wheelbase2293 ± 10 mm
Wheel Tread2050 mm
Operating Weight10800 kg
Rated Load2500 kg
Bucket Width2620 mm
Bucket Capacity1.2 m³
Backhoe Capacity0.3 m³
Maximum Dumping Height3050 ± 50 mm
Maximum Dumping Distance870 mm
Maximum Digging Depth3820 mm
Minimum Turning Radius6950 mm
Engine ModelYUCHAI YC4A105Z-T20 /
Rated Power75 kW
Rated Speed2200 r/min
Maximum Torque400 N·m
Displacement4.8 L
Gear ShiftF4 / R4 /
Tire Size16.9-28 /
Loader Hydraulic Pressure20 MPa
Backhoe Hydraulic Pressure20 MPa
Steering Hydraulic Pressure14 MPa
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
