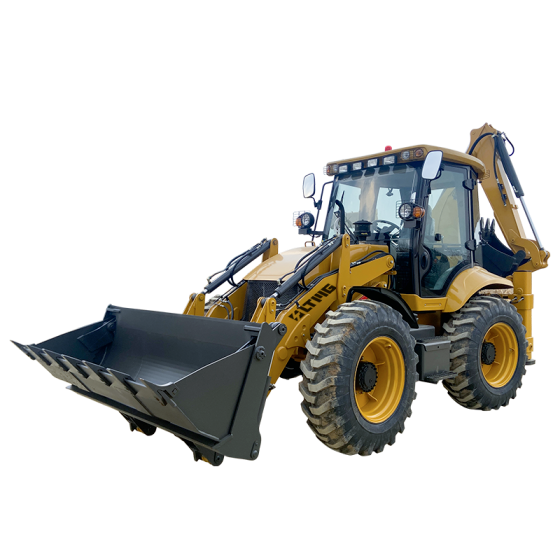

Backhoe Loader
BLT388H (Premium)
2500 kgRated Load
1.2 m³Bucket Capacity
0.3 m³Backhoe Capacity
Key Features
F4/R4 synchromesh mechanical shift transmission and a maintenance-free axle ensure superior productivity and long-term durability.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
ModelBLT388H (Premium)
Wheelbase2293 mm
Wheel Tread2050 mm
Operating Weight10500 kg
Rated Load2500 kg
Bucket Capacity1.2 m³
Backhoe Capacity0.3 m³
Maximum Dumping Height3050 mm
Maximum Dumping Distance870 mm
Maximum Digging Depth3820 (standard arm); 4970 (extendable arm) mm
Backhoe Swing Angle180 °
Maximum Breakout Force47 kN
Maximum Speed38 km/h
Minimum Turning Radius6950 (outside of bucket) mm
Steering Angle±35 °
Engine ModelYUCHAI YC4A105Z-T20 /
Engine TypeIn-line, direct injection, four-stroke /
Rated Power75 kW
Rated Speed2200 r/min
Maximum Torque≥400 N·m
Minimum Fuel Consumption≤230 g/kW·h
Displacement4.8 L
Cylinders × Bore × Stroke4 × 108 × 132 cyl × mm × mm
Drive Type4-wheel drive; 4-wheel steer; crab steering /
Gear ShiftF4 / R4 /
Axle ManufacturerCarraro /
Front Axle Model26.32-1900 /
Rear Axle Model26.43M 1900-REAR /
Tire Size16.9-28 /
Front Tire Pressure0.35 MPa
Rear Tire Pressure0.35 MPa
Service BrakeWet, built-in, self-adjusting, self-balancing /
System Pressure14 MPa
Hydraulic Tank Capacity130 L
Fuel Tank Capacity130 L
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
