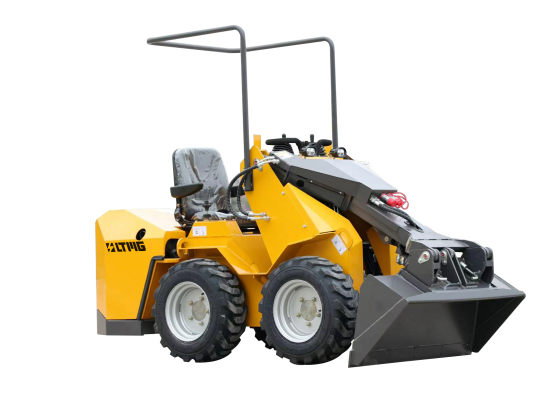

Skid Steer Loader
LT23S
920 / 930 / 950 kgOperating Weight
560 kgRated Load
0.15 m³Bucket Capacity
Key Features
Durable, fuel-efficient engines from brands like Briggs&Stratton, RATO and KOOP provide reliable power for all tasks.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
ModelLT23S
Hydraulic Tank23 L
Engine Oil1.7 / 1.6 / 3 L
Operating Weight920 / 930 / 950 kg
Rated Pressure17 MPa
Lowering Time3.1 s
Dumping Time1.8 s
Climbing Ability30 %
Fuel Consumption≤6.7 / ≤6.7 / ≤4.8 L/h
Starting MethodElectric starting /
Fuel Tank26 L
Lifting Time4.5 s
Rated Load560 kg
Rated Power23HP/3600rpm / 23HP/3600rpm / 20HP/3000rpm /
EngineBriggs & Stratton 3864 / RATO R740D / KOOP KD2V80 /
Max. Lift Weight800 kg
Travel Speed0-4.3 km/h
Bucket Capacity0.15 m³
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
