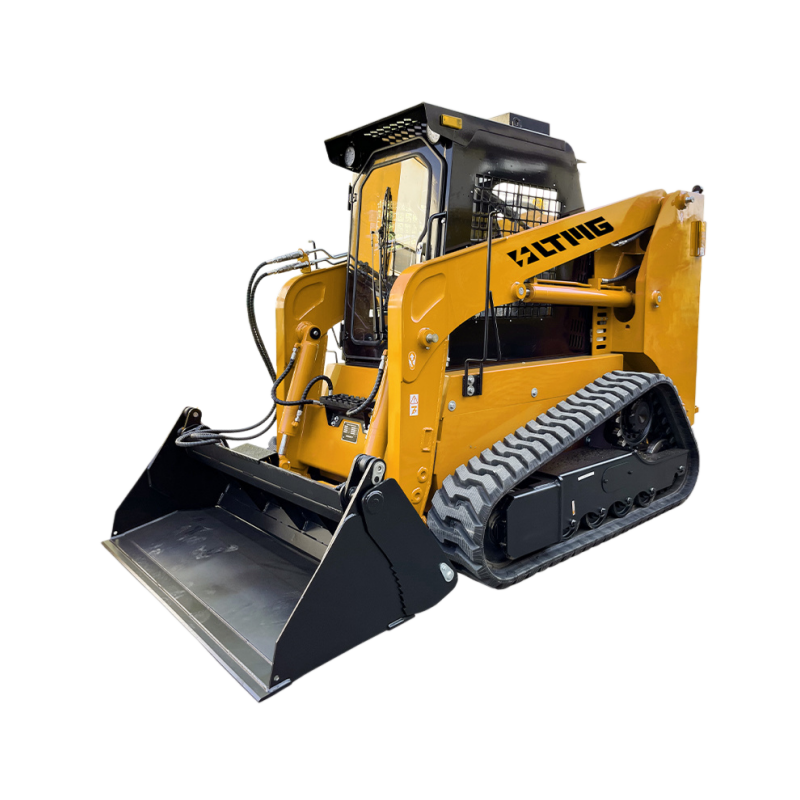

Skid Steer Loader

LTS100

Name: LTS100 滑移装载机-LTS100
Brand: LTMG

4500 kgOperating Weight

1200 kgRated Load

0.55 m³Bucket Capacity

Request an inquiry

Key Features

The patented adjustable maneuvering-distance design accommodates the operating preferences and driving needs of different users.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号LTS100

Operating Weight4500 kg

Rated Load1200 kg

Bucket Capacity0.55 m³

Max. Speed12/18 km/h

Engine BrandWEICHAI /

Engine ModelWP4.1 /

Rated Power74/2200 kW/rpm

Engine Displacement4.088 L

Overall Operating Height4070 mm

Height to Bucket Hinge Pin3150 mm

Height to Top of Cab2160 mm

Height to Bottom of Level Bucket2983 mm

Overall Length without Bucket3000 mm

Overall Length with Bucket3700 mm

Dumping Angle at Maximum Height40 °

Dumping Height2450 mm

Dumping Reach700 mm

Rollback Angle on Ground30 °

Rollback Angle at Full Height104 °

Wheelbase1500 mm

Ground Clearance200 mm

Angle of Departure20 °

Front Turning Radius without Bucket1365 mm

Front Turning Radius2200 mm

Rear Turning Radius1742 mm

Rear Axle to Bumper938 mm

Tread Width1654 mm

Overall Width1994 mm

Bucket Width2030 mm

Track Model320 × 86 /

Max. Traction>30 kN

Max. Breakout Force≥20 kN

Lifting Time of Boom7 s

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
