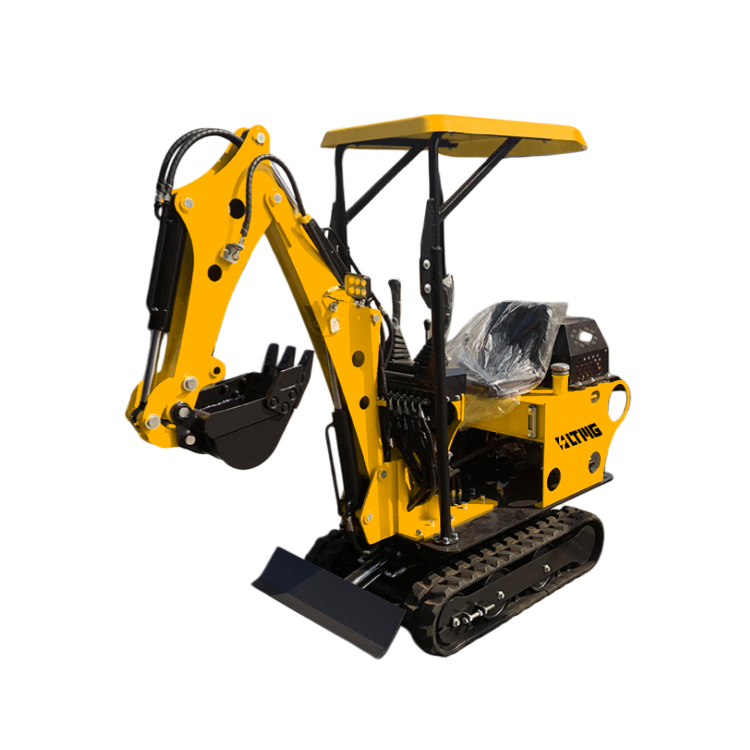

Diesel Tracked Excavator
LTE08
800 kgOperating Weight
8.6 kWRated Power
0.02 m³Bucket Capacity
Key Features
Adopts an international renowned engine delivering high torque, strong power, and excellent fuel efficiency.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
ModelLTE08
Operating Weight800 kg
Engine ModelKOOP 192F /
Rated Power8.6 kW
Bucket Capacity0.02 m³
System / Working Pressure16 MPa
Swing Speed12 rpm
Traveling / Walking Speed2 km/h
Climbing Ability30 °
Max. Excavation Height2430 mm
Max. Unloading Height1650 mm
Max. Excavation Depth1200 mm
Max. Digging Distance2450 mm
Min. Turning Radius1100 mm
Overall Length2200 mm
Overall Width720 mm
Overall Height1150 mm
Min. Ground Clearance380 mm
Bucket Width300 mm
Max. Digging Force9.5 kN
Ground Pressure20 kPa
Track Ground Length1140 mm
Track Width150 mm
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
Recommended products
Diesel Tracked Excavator

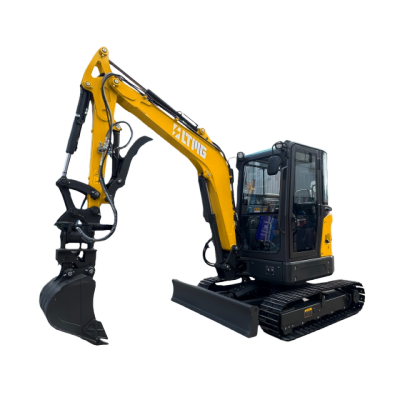

LTE40
- Operating Weight
- Operating Weight kg
- Rated Power
- 18.5/2200 kW/r/min
- Bucket Capacity
- 0.12 m³
Diesel Tracked Excavator

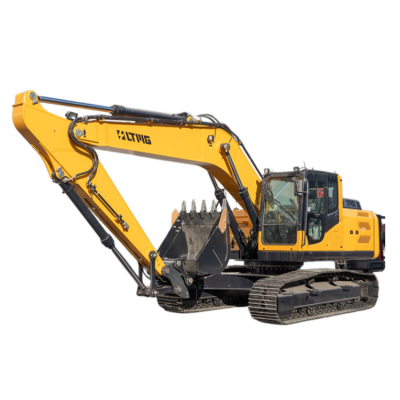

LTE230
- Operating Weight
- 23000 kg
- Rated Power
- 124KW/2050rpm kW
- Bucket Capacity
- 1.1 m³
Diesel Tracked Excavator

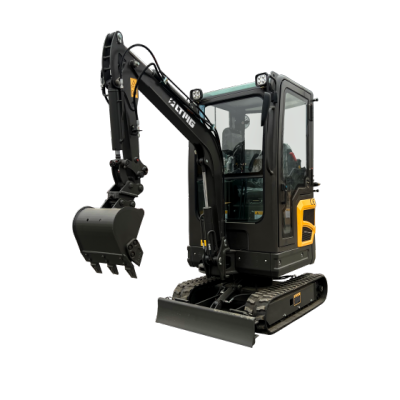

LTE15
- Operating Weight
- 1400 kg
- Rated Power
- 10.2/2500 kW/r/min
- Bucket Capacity
- 0.025 m³
Diesel Tracked Excavator

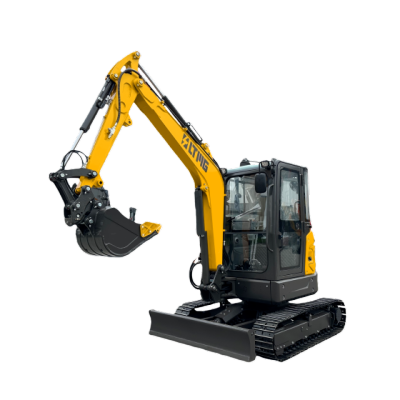

LTE35
