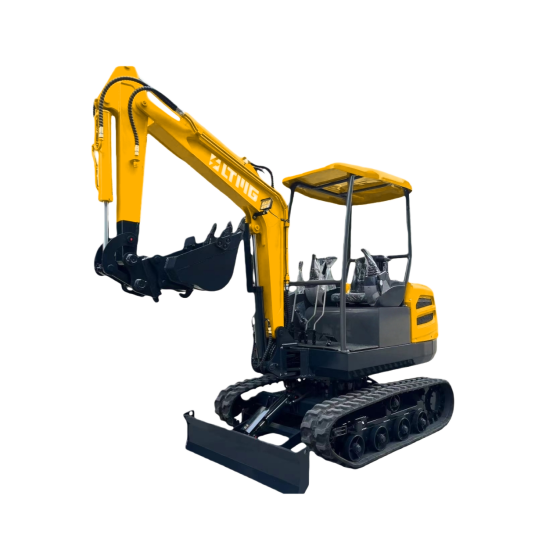

Diesel Tracked Excavator

LTE25

Name: LTE25 柴油履带式挖掘机-LTE25
Brand: LTMG

2200 kgOperating Weight

0.06 m³Bucket Capacity

22.1/2200 kW/r/minRated Power

Request an inquiry

Key Features

The crawler excavator features a robust, thickened chassis for enhanced durability and stability on any terrain.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

ModelLTE25

Operating Weight2200 kg

Cab TypeCabin /

Bucket Capacity0.06 m³

Bucket Width400 mm

Max. Digging Force12 kN

Arm Digging Force5 kN

Engine ModelLL385 /

Rated Power22.1/2200 kW/r/min

Engine Displacement1.617 L

Hydraulic Pump BrandTAITE /

Pump TypeGEAR 12/12 /

Max Flow Rate24/24 L/min

Swing MotorTAITE 400cc /

Traveling Motor200 cc

Traveling / Walking Speed2.8 km/h

Traction Force12 kN

Ground Pressure24 kPa

Climbing Ability30 °

Fuel Tank Capacity36 L

Hydraulic Tank Capacity40 L

Boom Deflection (Left/Right)/ °

Swing Speed10 r/min

Min. Turning Radius2100 mm

Max. Excavation Height3200 mm

Max. Unloading Height2200 mm

Max. Excavation Depth2000 mm

Max. Vertical Digging Depth2000 mm

Max. Digging Distance3800 mm

Dozer Blade Dimensions (L*W)1300*300 mm

Max. Blade Lift Height210 mm

Max. Blade Sink Depth150 mm

Overall Dimensions (L*W*H)3400*1300*2400 mm

Track Length1890 mm

Track Gauge1040 mm

Rear Swing Radius1270 mm

Platform Ground Clearance810 mm

Min. Ground Clearance260 mm

Overall Width1300 mm

Track Width245 mm

Track Height490 mm

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
