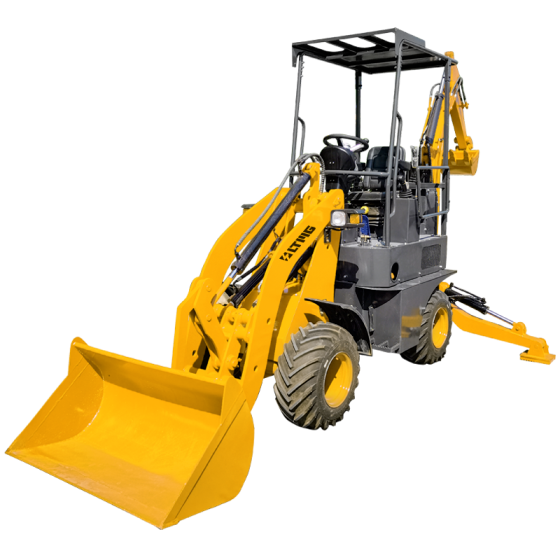

Backhoe Loader
WZ06-10
0.2 m³Bucket Capacity
1800 kgOperating Weight
0.08 m³Backhoe Capacity
Key Features
Hydrostatic drive delivers seamless 0-20 km/h speed adjustment with instant throttle response, eliminating jerky motions for precise, fatigue-free operation.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
ModelWZ06-10
Bucket Capacity0.2 m³
Rated Load600 kg
Operating Weight1800 kg
Overall Dimensions5000*1150*2800 mm
Max. Digging Radius2500 mm
Gear ShiftF2/R2 /
Cylinders Inside Diameter4-90 /
Rated Speed2400 r/min
Max. Loading Lifting Height3000 mm
Rotary Angle of Excavator120 °
Max. Digging Height3640 mm
Backhoe Capacity0.08 m³
Hydraulic Tank30 L
Fuel Tank30 L
Max. Digging Dumping Height2600 mm
Max. Digging Depth2000 mm
Max. Climbing Gradient25 °
Tire Size26X12-12 /
Travel Speed20 km/h
EngineKubota D1105-EF02 /
Rated Power18.2 kW
Turning Radius2600 mm
Min. Ground Clearance175 mm
Wheel Track840 mm
Wheelbase1618 mm
Dumping Distance1000 mm
Dumping Height2000 mm
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
