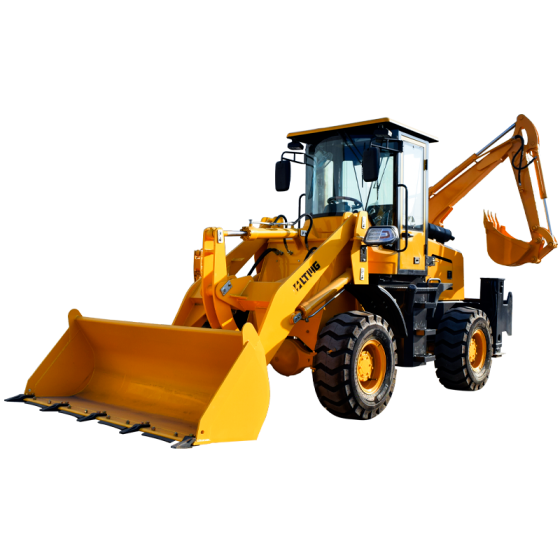

Backhoe Loader
WZ15-26
0.7 m³Bucket Capacity
4500 kgOperating Weight
0.2 m³Backhoe Capacity
Key Features
Famous brand turbocharged engine, high efficiency, energy saving, low noise and strong power.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
ModelWZ15-26
Fuel Tank40 L
Rear Wheel Pressure250 kPa
Drive TypeFour-wheel drive /
Front Wheel Pressure250 kPa
Bucket Capacity0.7 m³
Rated Load1800 kg
Operating Weight4500 kg
Overall Dimensions5900*1880*2730 mm
Travel Speed26 km/h
Turning Radius4000 mm
EngineYunnei YN27GBZ /
Hydraulic Tank40 L
Variable Speed Type450 mm
Variable Speed TypeHydraulic variable speed /
Bucket Width1900 mm
System Pressure16 MPa
Max. Digging Dumping Height2200 mm
Max. Loading Lifting Height4200 mm
Max. Breakout Force36 kN
Forward Shovel Action Time12 s
Cylinders Inside Diameter4-90 /
Gear ShiftF2/R2 /
Steering Angle33 °
Rated Speed2400 r/min
Rotary Angle of Excavator180 °
Backhoe Capacity0.2 m³
Max. Digging Height4200 mm
Max. Digging Force28 kN
Max. Climbing Gradient25 °
Tire Size23.5-16 /
Dumping Distance850 mm
Min. Ground Clearance220 mm
Digging Bucket Width500 mm
Max. Digging Depth2700 mm
Max. Digging Radius4600 mm
Dumping Height2300 mm
Wheel Track1500 mm
Wheelbase2315 mm
Rated Power58 kW
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
