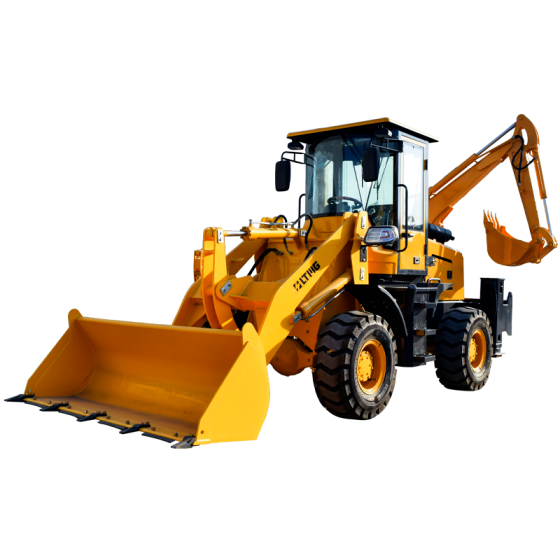

Backhoe Loader
WZ20-28
1 m³Bucket Capacity
5400 kgOperating Weight
0.2 m³Backhoe Capacity
Key Features
Combining advanced engineering with practical features to optimize productivity while reducing operational costs.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
ModelWZ20-28
EngineYunnei YN28GB2 /
Min. Ground Clearance290 mm
Wheel Track1580 mm
Wheelbase2550 mm
Turning Radius4500 mm
Dumping Distance900 mm
Rated Power76 kW
Travel Speed28 km/h
Bucket Capacity1 m³
Overall Dimensions6200*1940*2880 mm
Tire Size16/70-20 /
Rated Load2000 kg
Operating Weight5400 kg
Max. Climbing Gradient25 °
System Pressure18 MPa
Max. Digging Dumping Height2300 mm
Max. Digging Depth2600 mm
Bucket Width2130 mm
Dumping Height3500 mm
Max. Digging Radius4600 mm
Digging Bucket Width600 mm
Backhoe Capacity0.2 m³
Steering Angle33 °
Max. Loading Lifting Height4300 mm
Rear Wheel Pressure250 kPa
Hydraulic Tank80 L
Fuel Tank90 L
Front Wheel Pressure250 kPa
Gear ShiftF2/R2 /
Cylinders Inside Diameter4-102 /
Rated Speed2400 r/min
Max. Breakout Force42 kN
Forward Shovel Action Time12 s
Rotary Angle of Excavator180 °
Max. Digging Force28 kN
Max. Digging Height4300 mm
Variable Speed TypeHydraulic variable speed /
Drive TypeFour-wheel drive /
Variable Speed Type600 mm
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
