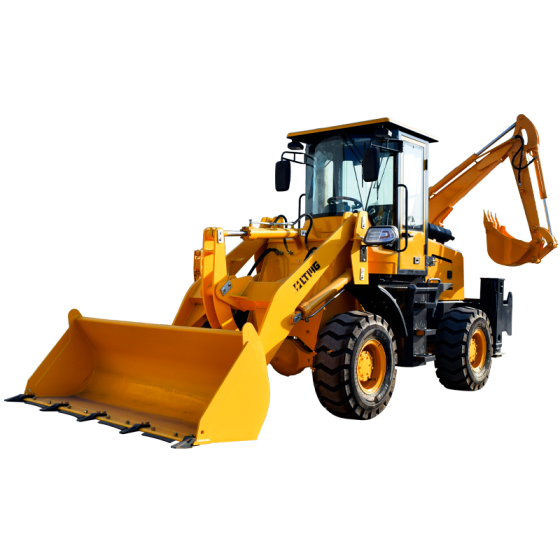

Backhoe Loader
WZ25-30
6800 kgOperating Weight
0.25 m³Backhoe Capacity
1.2 m³Bucket Capacity
Key Features
Available H-legs and A-legs provide ultra-high stability and high load capacity on uneven terrain.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
ModelWZ25-30
Operating Weight6800 kg
Backhoe Capacity0.25 m³
Bucket Capacity1.2 m³
Rated Power92 kW
Travel Speed28 km/h
Wheel Track1630 mm
Min. Ground Clearance380 mm
Tire Size16/70-20 /
EngineYunnei YN48GBZ /
Digging Bucket Width600 mm
Max. Digging Radius4600 mm
Max. Digging Dumping Height2300 mm
Max. Digging Depth2600 mm
Max. Climbing Gradient25 °
System Pressure18 MPa
Gear ShiftF2/R2 /
Max. Digging Height4300 mm
Max. Digging Force28 kN
Rotary Angle of Excavator180 °
Max. Loading Lifting Height4500 mm
Max. Breakout Force42 kN
Forward Shovel Action Time12 s
Rated Speed2400 r/min
Cylinders Inside Diameter4-108 /
Wheelbase2675 mm
Dumping Distance900 mm
Dumping Height3500 mm
Overall Dimensions6500*2040*2800 mm
Bucket Width2200 mm
Rated Load2600 kg
Turning Radius4500 mm
Drive TypeFour-wheel drive /
Variable Speed TypeHydraulic variable speed /
Fuel Tank90 L
Rear Wheel Pressure250 kPa
Front Wheel Pressure290 kPa
Hydraulic Tank90 L
Variable Speed Type620 mm
Steering Angle32 °
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
