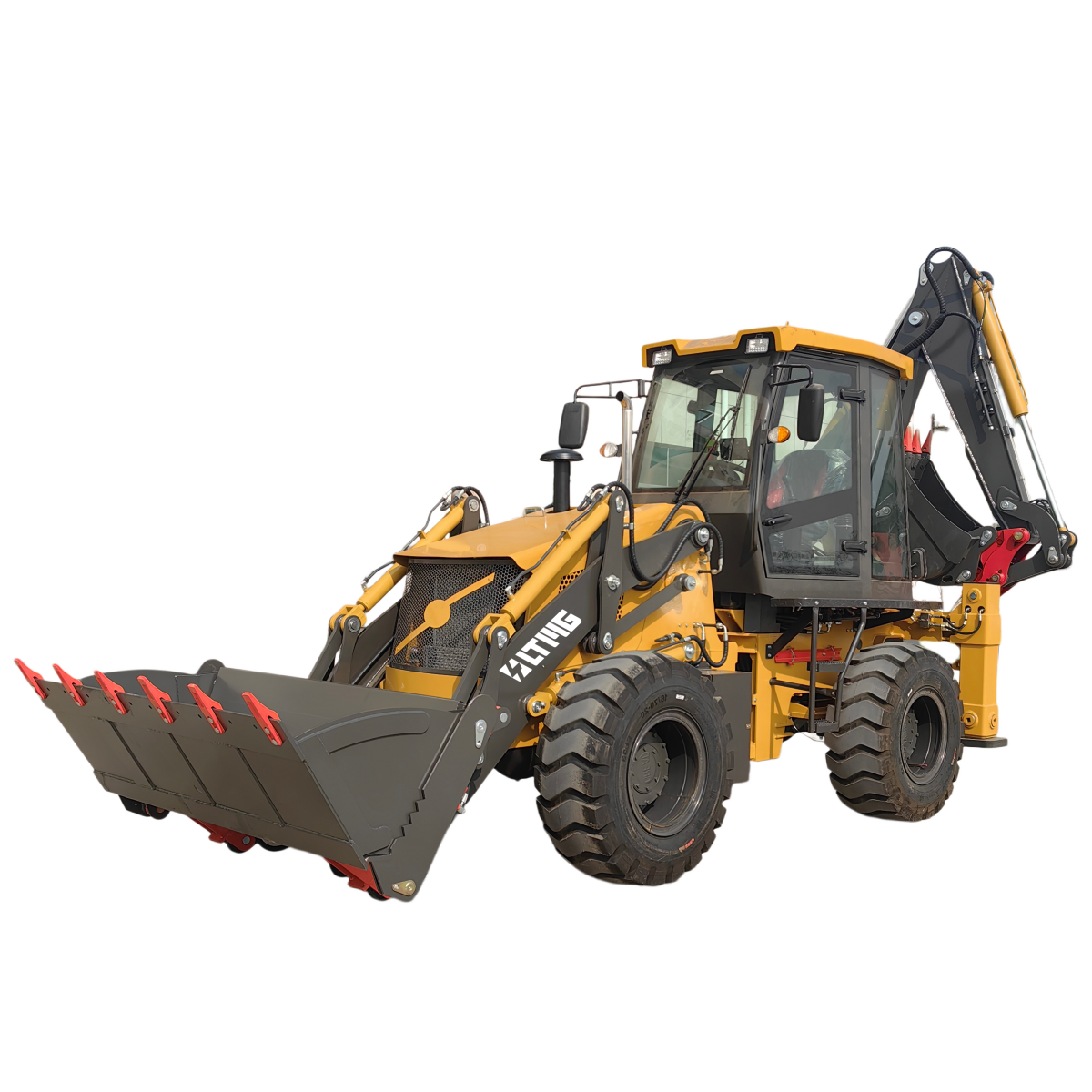

Backhoe Loader
WZ30-25
7650 kgOperating Weight
1 m³Bucket Capacity
0.3 m³Backhoe Capacity
Key Features
Equipped with trusted domestic-brand tyres that are wear-resistant and reliable, ensuring efficient operation across various harsh working conditions.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
ModelWZ30-25
Overall Dimensions (L × W × H)5800 × 2268 × 3760 mm
Wheelbase2370 mm
Minimum Ground Clearance300 mm
Operating Weight7650 kg
Rated Load2500 kg
Bucket Capacity1 m³
Backhoe Capacity0.3 m³
Maximum Dumping Height2770 mm
Maximum Dumping Distance925 mm
Maximum Digging Depth4000–5200 mm
Maximum Speed22 km/h
Minimum Turning Radius5000 mm
Engine ModelYudong 4105 /
Rated Power85 kW
Rated Speed2600 r/min
Drive TypeFour-wheel drive /
Transmission TypeHydrodynamic transmission /
Gear ShiftF2 / R2 /
Tire Size16/70-20 /
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
