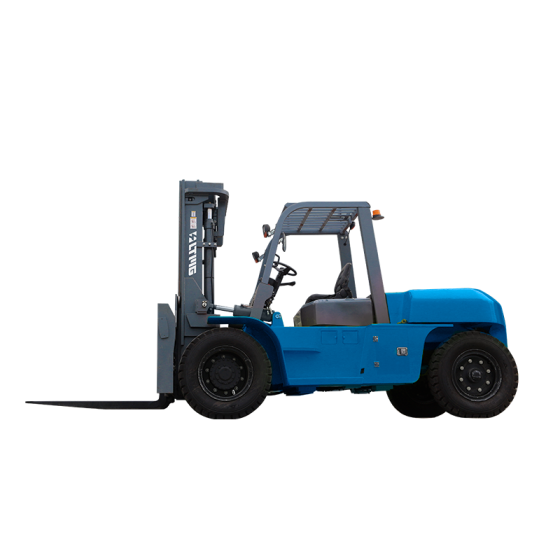

Electric Forklift
FB100(Li-ion)
10000 kgRated Capacity
600 mmLoad Center
3000 mmLift Height
Key Features
It adopts high quality lithium iron phosphate battery, ensuring zero emissions in the enire working process.
Technical data
型号FB100(Li-ion)
Power TypeLithium Battery -
Rated Capacity10000 kg
Load Center600 mm
Lift Height3000 mm
Fork Size1220×150×85 mm
Mast Tilt Angle (F/R)46185 Deg
Turning Radius4080 mm
Ground Clearance235 mm
Front Overhang720 mm
Max. Gradeability14 %
Wheel Base2800 mm
Overall Weight15000 kg
Total Length without Fork4260 mm
Overall/Total Width2240 mm
Mast Lowered Height2840 mm
Mast Extended Height4320 mm
Overhead Guard Height2560 mm
Traveling Speed(loaded/unloaded)14/16 km/h
Lifting Speed (loaded/unloaded)360/400 mm/s
Front Tyres9.00-20-16PR -
Rear Tyres9.00-20-16PR -
Battery76.8/1080 V/Ah
Wheel Number (Front/Rear)4 X /2 -
Front Tread1600 mm
Rear Tread1722 mm
Free Lifting Height200 mm
Ground Clearance of Wheel Base Center (Loaded)245 mm
Right Angle Stacking Aisle Width (Pallet 1000×1000mm)5750 mm
Right Angle Stacking Aisle Width (Pallet 1200×1200mm)5950 mm
Lateral Fork Adjustment Max./Min1840-300 mm
Lowering Speed420 mm/s
Battery Weight720 kg
Driving Motor Power (60 Minutes)30 kw
Lifting Motor Power (S315%)2X26 kw
Driving Motor Control ModeMOSFET/AC -
Lifting Motor Control ModeMOSFET/AC -
Service Brake/Parking BrakeHydraulic / Mechanical -
Hydraulic System Working Pressure20 Mpa
