Electric Forklift

FB35(Li-ion)

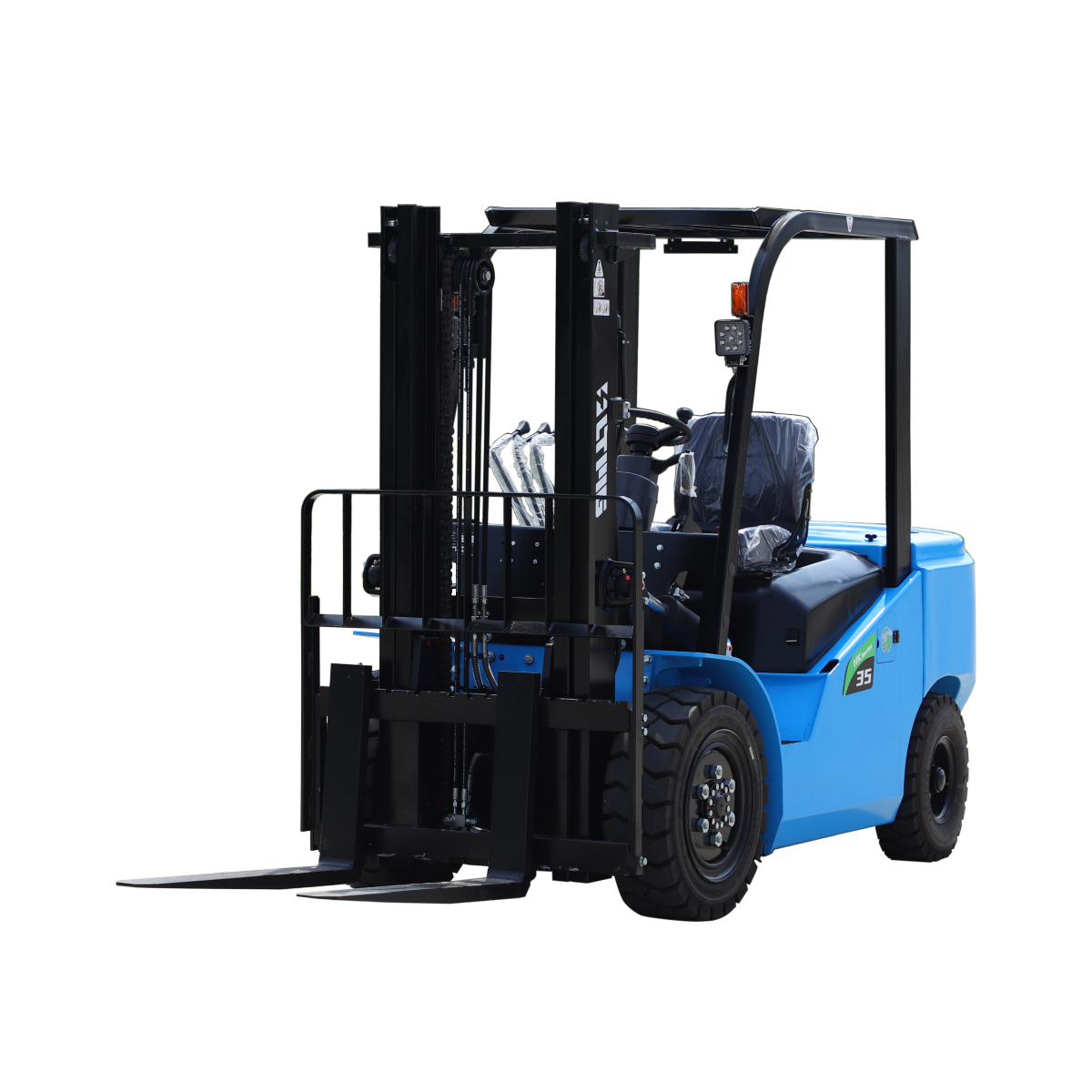

Name: FB35(Li-ion) 电动叉车-FB35
Brand: LTMG

3500 kgRated Capacity

500 mmLoad Center

3000 mmLift Height

Request an inquiry

Key Features

The vehicle is equipped with LED lighting, which is energy-efficient and significantly enhances the performance and lifespan of the lights.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号FB35(Li-ion)

Power TypeElectric -

Rated Capacity3500 kg

Load Center500 mm

Lift Height3000 mm

Fork Size1070×122×50 mm

Mast Tilt Angle (F/R)46185 Deg

Turning Radius2500 mm

Ground Clearance130 mm

Front Overhang480 mm

Max. Gradeability15/20 %

Wheel Base1750 mm

Overall Weight4550/4350 kg

Total Length without Fork2700 mm

Overall/Total Width1230 mm

Mast Lowered Height2125 mm

Mast Extended Height4230 mm

Overhead Guard Height2145 mm

Max Travel Speed (Full load/No load)15/16 km/h

Max Lift/Lifting Speed (Full load/No load)300/380 mm/s

Front Tyres28x9-15-14PR -

Rear Tyres6.50-10-10PR -

Battery76.8/202 V/Ah

Voltage Plateau80 V

Operation TypeSeat -

Rear Overhang470 mm

Axle Load (Full Load, Front/Rear)7220/830 kg

Axle Load (No Load, Front/Rear)1820/2730 kg

Tire TypePneumatic tire -

Number of Wheels (x=Drive Wheels)2x/2 -

Front Track Width1000 mm

Rear Track Width970 mm

Free Lift Height140 mm

Outer Distance Between Forks (Min/Max)250-1085 mm

Mast Ground Clearance (No Load)115 mm

Lowering Speed (Full Load/No load)450/410 mm/s

Max. Traction16500 N

Service BrakingHydraulic -

Parking BrakeMechanical -

Rated Power of Traction Motor (S2 60min)10AC kW

Rated Power of Oil Pump Motor (S3 15%)16AC kW

Motor Type / Protection Levelac asynchronous\IP54 -

Battery Typelithium iron phosphate battery -

Standard Battery Weight200 kg

Battery Heating Form / Protection LevelLow temperature heating\IP54 -

MCU Motor Controller TypeMOSFET/AC -

MCU Motor Controller ManufacturerJIACHEN -

MCU Motor Controller ModelACM III 80C350 -

Hydraulic System Working Pressure18.5 Mpa

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
