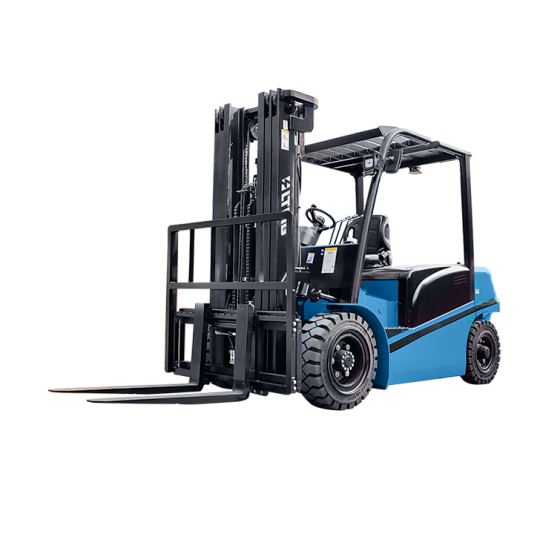

Electric Forklift
FB45(Lead-acid)
4500 kgRated Capacity
500 mmLoad Center
3000 mmLift Height
Key Features
Compared with DC motor, the maximum speed of AC motor is higher, which is more compact yet more powerful. With faster start-up response, the forklift can run at full speed over short distances. No need to replace the carbon brush or diverter, thus saving maintenance cost.
Technical data
型号FB45(Lead-acid)
Power TypeBattery —
Rated Capacity4500 kg
Load Center500 mm
Lift Height3000 mm
Fork Size1070×125×50 mm
Mast Tilt Angle (F/R)46185 Deg
Turning Radius2172 mm
Ground Clearance140 mm
Front Overhang565 mm
Max. Gradeability15 %
Wheelbase2050 mm
Overall Weight6900 kg
Total Length without Fork3135 mm
Overall Width1400 mm
Mast Lowered Height2150 mm
Mast Extended Height4280 mm
Overhead Guard Height2255 mm
Max Travel Speed (Full load)13/14 km/h
Max Lift Speed (Full load)260/400 mm/s
Front Tyres28X12.5-15 —
Rear Tyres7.00-12 —
Battery80/560 V/Ah
Wheel Number (F/R)2 X / 2 —
Front Tread1160 mm
Rear Tread970 mm
Free Lifting Height150 mm
Ground Clearance of Wheel Base Center (Loaded)145 mm
Right Angle Stacking Aisle Width (Pallet 1000×1000mm)4845 mm
Right Angle Stacking Aisle Width (Pallet 1200×1200mm)5045 mm
Lateral Fork Adjustment (Max./Min.)1300/300 mm
Lowering Speed<600 mm/s
Battery Weight1265 kg
Driving Motor Power (60 min)18 kW
Lifting Motor Power (S3 15%)26 kW
Driving Motor Control ModeFull AC —
Lifting Motor Control ModeFull AC —
Service Brake / Parking BrakeHydraulic / Mechanical —
Hydraulic System Working Pressure20 MPa
Recommended products

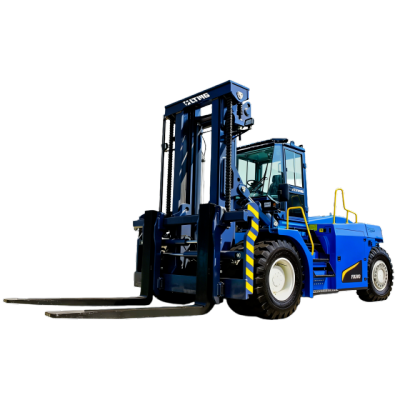

Electric Forklift
FB300(Li-ion)
- Rated Capacity
- 30000 kg
- Load Center
- 1200 mm
- Lift Height
- 4000 mm

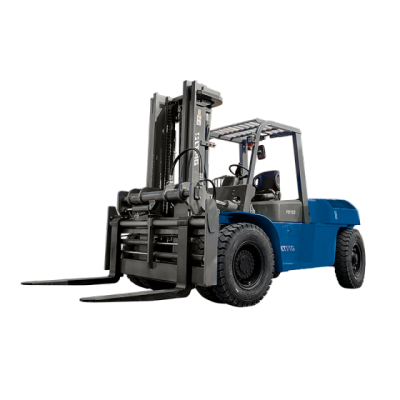

Electric Forklift
FB120(Li-ion)
- Rated Capacity
- 12000 kg
- Load Center
- 600 mm
- Lift Height
- 3000 mm
Electric Forklift
FB40(Li-ion)
- Rated Capacity
- 4000 kg
- Load Center
- 500 mm
- Lift Height
- 3000 mm

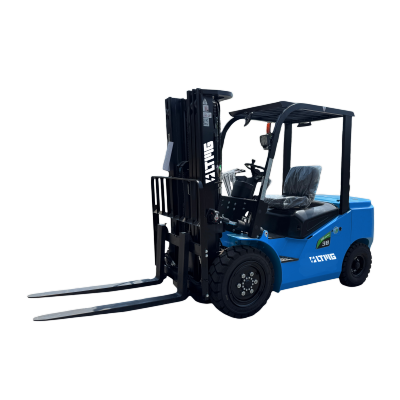

Electric Forklift
