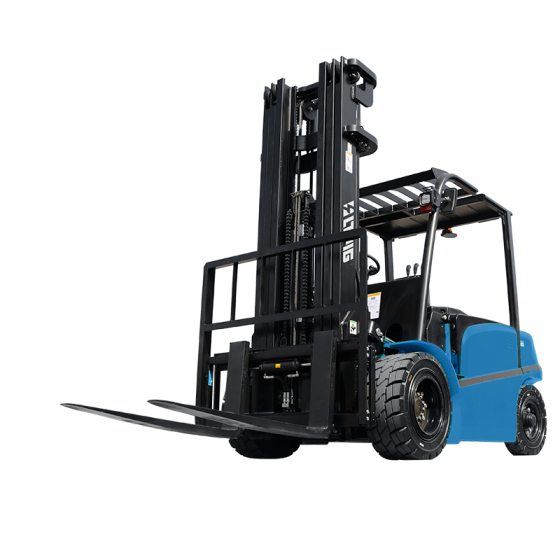

Electric Forklift
FB70(Li-ion)
7000 kgRated Capacity
600 mmLoad Center
3000 mmLift Height
Key Features
AC motors achieve higher top speeds within a more compact, powerful design than DC types. Removing carbon brushes and diverters substantially reduces maintenance costs.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
型号FB70(Li-ion)
Power TypeLithium Battery -
Rated Capacity7000 kg
Load Center600 mm
Lift Height3000 mm
Fork Size1220×150×65 mm
Mast Tilt Angle (F/R)6/12 Deg
Turning Radius3180 mm
Ground Clearance200 mm
Front Overhang590 mm
Max. Gradeability20 %
Wheel Base2250 mm
Overall Weight10200 kg
Total Length without Fork3600 mm
Overall/Total Width1995 mm
Mast Lowered Height2500 mm
Mast Extended Height4420 mm
Overhead Guard Height2450 mm
Traveling Speed(loaded/unloaded)13/15 km/h
Lifting Speed (loaded/unloaded)340/380 mm/s
Front Tyres8.25-15-14PR -
Rear Tyres8.25-15-14PR -
Battery76.8/608 V/Ah
Wheel Number (Front/Rear)4 X /2 -
Front Tread1470 mm
Rear Tread1190 mm
Free Lifting Height200 mm
Ground Clearance of Wheel Base Center (Loaded)220 mm
Right Angle Stacking Aisle Width (Pallet 1000×1000mm)5195 mm
Right Angle Stacking Aisle Width (Pallet 1200×1200mm)5395 mm
Lateral Fork Adjustment Max./Min1840-300 mm
Lowering Speed430 mm/s
Battery Weight600 kg
Driving Motor Power (60 Minutes)30 kw
Lifting Motor Power (S315%)2X26 kw
Driving Motor Control ModeMOSFET/AC -
Lifting Motor Control ModeMOSFET/AC -
Service Brake/Parking BrakeHydraulic / Mechanical -
Hydraulic System Working Pressure20 Mpa
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
