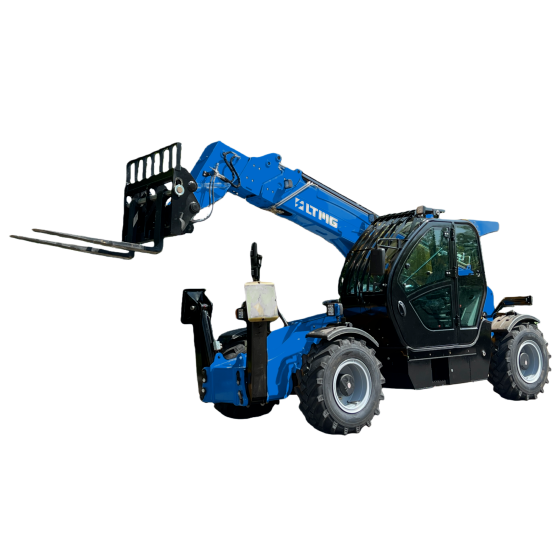

Diesel Telescopic Forklift

FT35

Name: FT35 柴油伸缩臂叉车-FT35
Brand: LTMG

3500 kgRated Capacity

7000 mmLift Height

4.25 mTurning Radius

Request an inquiry

Key Features

Four-wheel steering with crab mode allows effortless navigation and diagonal movement in tight, narrow spaces.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号FT35

Rated Capacity3500 kg

Lift Height7000 mm

Turning Radius4.25 m

Ground Clearance0.35 m

Wheel Base3.15 m

Overall Weight7900 kg

Max. Travel Speed35 km/h

Engine ModelYN38GBZ -

Engine Power76 kW

Max. Outreach3.2 m

Overall Length To Carriage4.65 m

Length To Face Of Forks5.87 m

Overall Width2.2 m

Overall Height2.55 m

Overall Cab Width0.84 m

Tilt-Up Angle12 °

Tilt-Down Angle114 °

Tires TypePneumatic -

Standard Tires16/70-20 -

Forks Length/Width/Section1220 mm x 125 mm / 50 mm mm

Engine BrandYUCHAI -

Lifting Time10 s

Lowering Time7 s

Extension Time12 s

Retraction Time8.6 s

Crowd Time4.8 s

Dump Time3.4 s

Hydraulic Pump TypeGear pump -

Hydraulic Flow / Pressure100 l/min

Engine Oil Tank5.5 L

Hydraulic Oil Tank70 L

Fuel Tank95 L

Transmission TypeTorque converter -

Number Of Gears (Forward / Reverse)46055 -

Parking BrakeAutomatic air-cut brake -

Service Brakeimmersed multi-discs braking on front & rear axles -

Steering Wheels (Front / Rear)46055 -

Drive Wheels (Front / Rear)46055 -

Safety Cab HomologationFOPS level 2 cab -

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
