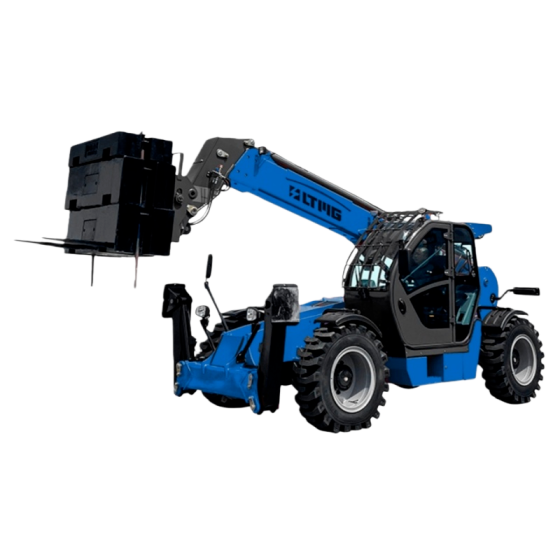

Diesel Telescopic Forklift

FT50

Name: FT50 柴油伸缩臂叉车-FT50
Brand: LTMG

5000 kgRated Capacity

9800 mmLift Height

4.1 mTurning Radius

Request an inquiry

Key Features

Four-wheel steering with crab mode ensures agile navigation and diagonal movement in tight spaces.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号FT50

Rated Capacity5000 kg

Lift Height9800 mm

Turning Radius4.1 m

Ground Clearance0.38 m

Wheel Base3.15 m

Overall Weight12800 kg

Max. Travel Speed40 km/h

Engine ModelYCD4J22T-125 -

Engine Power91 kW

Max. Outreach4.5 m

Overall Length To Carriage6.4 m

Length To Face Of Forks7.62 m

Overall Width2.4 m

Overall Height2.55 m

Overall Cab Width0.84 m

Tilt-Up Angle12 °

Tilt-Down Angle114 °

Tires TypeSemi-solid -

Standard Tires16/70-24 -

Forks Length/Width/Section1220 mm x 125 mm / 50 mm mm

Engine BrandYUCHAI -

Lifting Time18 s

Lowering Time14.4 s

Extension Time17.9 s

Retraction Time16.5 s

Crowd Time5.1 s

Dump Time4 s

Hydraulic Pump TypeGear pump -

Hydraulic Flow / Pressure150 l/min

Engine Oil Tank5.5 L

Hydraulic Oil Tank70 L

Fuel Tank95 L

Transmission TypeTorque converter -

Number Of Gears (Forward / Reverse)4/4 -

Parking BrakeAutomatic air-cut brake -

Service Brakeimmersed multi-discs braking on front & rear axles -

Steering Wheels (Front / Rear)2/2 -

Drive Wheels (Front / Rear)2/2 -

Safety Cab HomologationFOPS level 2 cab -

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
