Key Features
Equipped with an imported power system for reliable quality assurance and superior performance.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

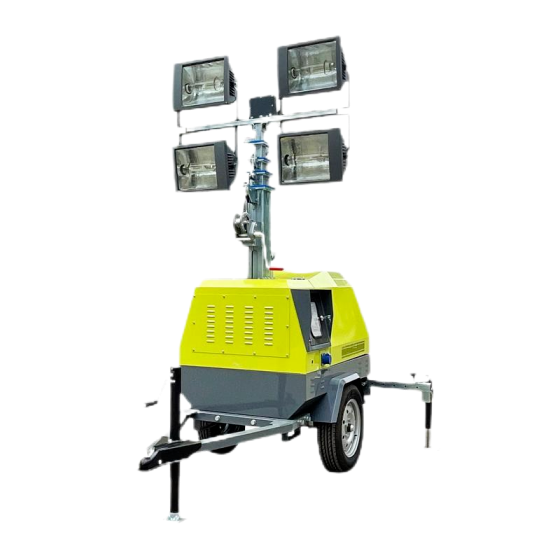

Technical data
型号4HL70
Model4VA4000 /
Operating Weight550 kg
Engine BrandKAMA | CHANGCHAI /
Engine Model186F /
Engine Power6 kW
Rated Voltage230 V
Fuel Tank Capacity35 L
Continuous Operating Time28 h
Lamp TypeMetal Halide Flood Lights | LED Lamp /
Lamp Power × Quantity1000 × 4 | 400 × 4 W
Mast Height7 mm
Wind Resistance<8 class
Overall Length2180 mm
Overall Width1130 mm
Overall Height2700 mm
Engine TypeSingle cylinder air cooling /
Engine Speed3600 rpm
Electrical Frequency50 Hz
Emission StandardTIER 4 /
Alternator TypeBrushless and Single Phase /
Generator Insulation ClassH CLASS /
Output Socket1 (230V, 10A) piece
Luminous Flux440000 | 224000 lm
Irradiation Distance100 m
Stabilizer AdjustmentManual adjustment /
Mast Extension MethodVertical lift /
Mast Lifting MethodHand lift /
Mast OperationFour-section lift rod /
Inclination<10 °
Suspension and BrakesHexagon rubber shaft without brake /
Tire and Rim Size13 /
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
