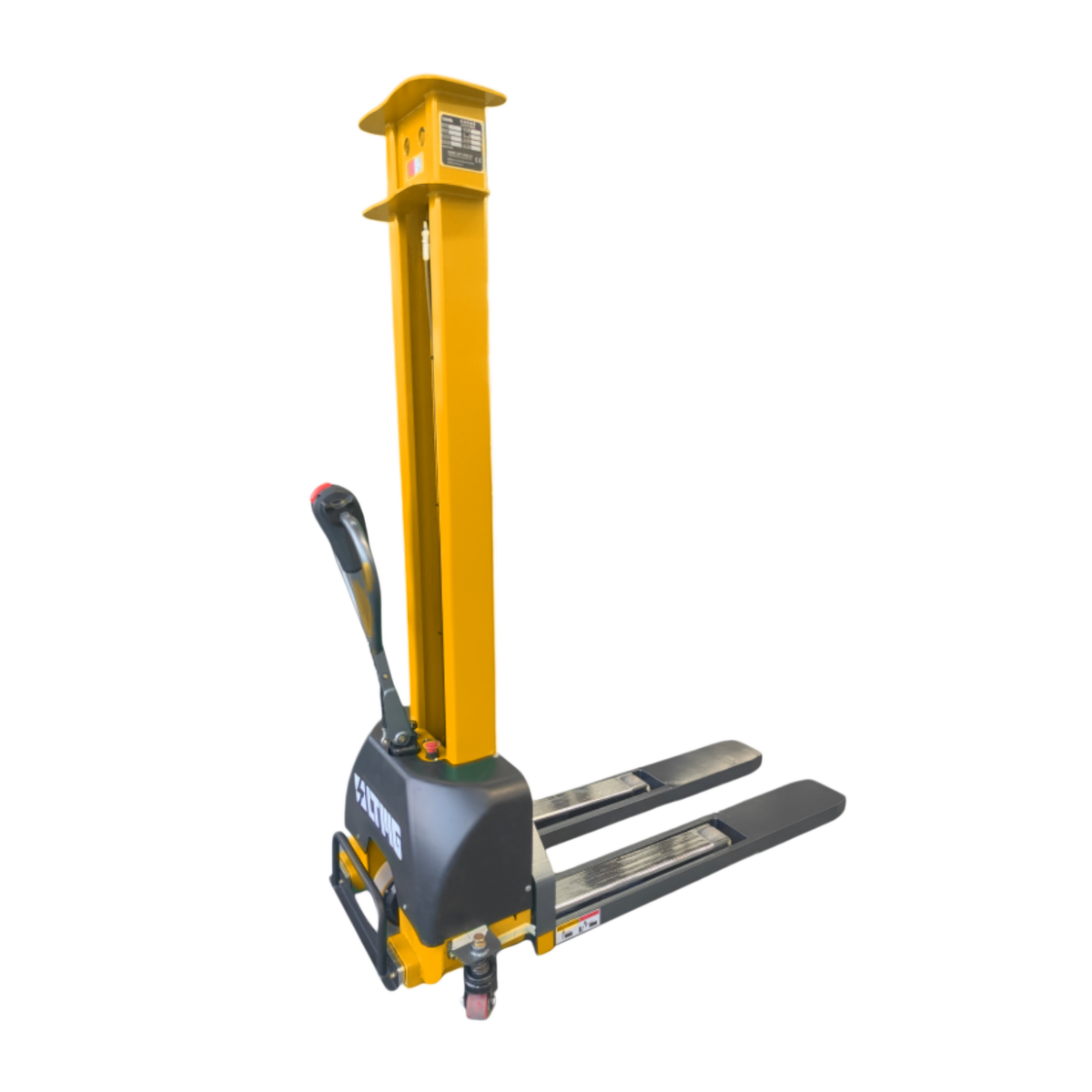

Electric Self Loading Stacker
ERB07
700 kgRated Capacity
400 mmLoad Center
800/900/1000/1100/1200/1300/1500/1600 mmLift Height
Key Features
The equipment is reinforced with a thickened steel plate, which enhances its stability during the loading and unloading process. This robust construction also boosts its load-bearing capacity, allowing it to handle heavier weights with ease.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
型号ERB07
Power TypeLi-Ion Battery /
Operation TypeWalkie /
Rated Capacity700 kg
Load Center400 mm
Wheelbase922 mm
Service Weight266/270/274/278/282/286/295/300 kg
Driving Wheel Sizeφ185×70 mm
Front Wheel Sizeφ80×70 mm
Universal Wheel Sizeφ75×50 mm
Middle Wheel Sizeφ45×30 mm
Front Wheel Track405/525 mm
Rear Wheel Track802 mm
Middle Wheel Position158 mm
Overall Height (Mast Lowered)1155/1255/1355/1455/1555/1655/1855/1955 mm
Overall Height (Fork Raised)1875/2075/2275/2475/2675/2875/3275/3475 mm
Lift Height800/900/1000/1100/1200/1300/1500/1600 mm
Overall Length1603 mm
Overall Width852 mm
Fork Length1195 mm
Fork Width190 mm
Fork Thickness70 mm
Distance Between Forks565/685 mm
Outrigger Length770 mm
Travel Speed (Laden/Unladen)1/3.5 km/h
Maximum Lifting Speed55 mm/s
Maximum Lowering Speed100 mm/s
Gradeability (Laden/Unladen)46152 %
Drive Motor Power0.8 kW
Lift Motor Power0.8 kW
Battery Voltage48 V
Battery CapacityStandard 15; Optional 30 / quick-change 30 Ah
Battery Weight2010-06-10 0:00:00 kg
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
