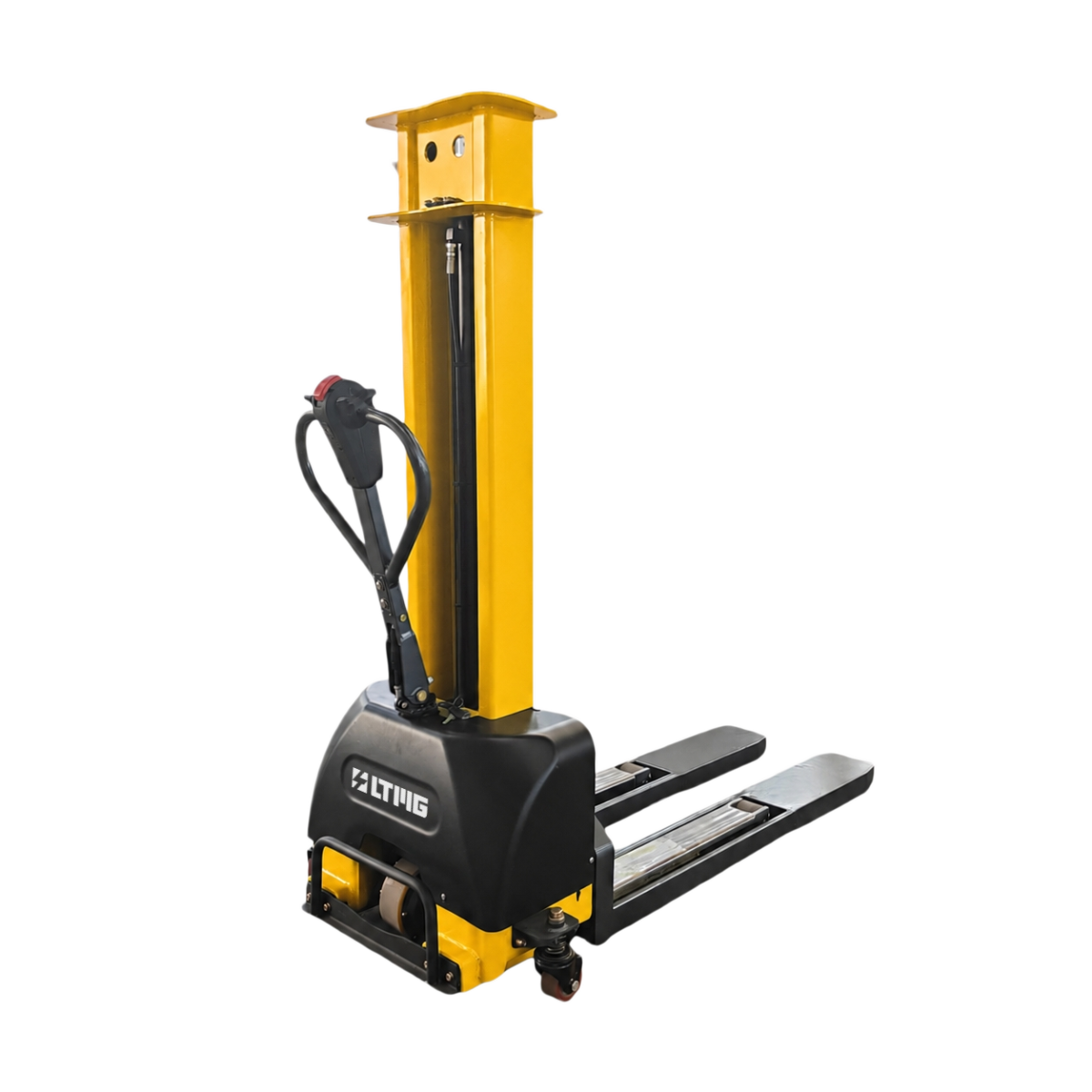

Electric Self Loading Stacker
ERB13
1300 kgRated Capacity
400 mmLoad Center
800/900/1000/1100/1200/1300/1500/1600 mmLift Height
Key Features
The equipment is reinforced with a thickened steel plate, which enhances its stability during the loading and unloading process. This robust construction also boosts its load-bearing capacity, allowing it to handle heavier weights with ease.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
型号ERB13
Power TypeLi-Ion Battery /
Operation TypeWalkie /
Rated Capacity1300 kg
Load Center400 mm
Wheelbase924 mm
Service Weight365/369/375/378/381/385/395/400 kg
Driving Wheel Sizeφ185×70 mm
Front Wheel Size2-φ80×70 mm
Universal Wheel Size2-φ75×45 mm
Middle Wheel Size2-φ45×30 mm
Front Wheel Track405/525 mm
Rear Wheel Track802 mm
Middle Wheel Position158 mm
Overall Height (Mast Lowered)1163/1263/1363/1463/1563/1663/1863/1963 mm
Overall Height (Fork Raised)1861/2061/2261/2461/2661/2861/3261/3461 mm
Lift Height800/900/1000/1100/1200/1300/1500/1600 mm
Overall Length1655 mm
Overall Width852 mm
Fork Length1250 mm
Fork Width190 mm
Fork Thickness70 mm
Distance Between Forks565/685 mm
Outrigger Length772 mm
Travel Speed (Laden/Unladen)1/3.5 km/h
Maximum Lifting Speed55 mm/s
Maximum Lowering Speed100 mm/s
Gradeability (Laden/Unladen)46152 %
Drive Motor Power0.8 kW
Lift Motor Power1.6 kW
Battery Voltage48 V
Battery CapacityStandard 15; Optional 30 / quick-change 30 Ah
Battery Weight2010-06-10 0:00:00 kg
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
